实验目的和仪器

0.4分

[实验目的]
(1) 用砝码对硅压阻力敏传感器进行定标,计算该传感器的灵敏度,学习传感器的定标方法。
(2) 观察用拉脱法测液体表面张力的物理过程和物理现象,并用物理学基本概念和定律进行分析和研究,加深对物理规律的认识。
(3) 测量水和乙醇的表面张力系数。
(4) 测量不同浓度的乙醇水溶液的表面张力系数。

[实验仪器及样品]
FD-NST-I液体表面张力系数测定仪,铝合金吊环,0.500 g砝码7个,砝码吊篮,镊子,游标卡尺,电吹风,水、乙醇和25%、50%、75%浓度的乙醇水溶液等。

得分：0.4 分

实验原理

1.5分

[实验原理]

硅压阻力敏传感器的工作原理：基于半导体的压阻效应，当传感器受到拉力作用时，其电阻值发生变化，通过电路转换为电压信号输出，电压变化与所受拉力成正比，经砝码定标后可获得灵敏度B

拉脱法测量液体表面张力系数的核心原理：液体表面层分子间存在相互作用的表面张力，当金属圆环与液体表面接触并缓慢拉脱时，表面张力会阻碍圆环脱离液体，此时传感器测量的拉力与表面张力平衡。

实验仪器如下

得分：1.5 分

实验步骤

1分

[实验步骤]

1)开机预热。

2)测量吊环的内、外径。

3)清洗实验材料。

4）在玻璃器皿内放入被测液体，并将玻璃器四安放在升降台上。

5）将砝码盘挂在力敏传感器挂钩上。

6）若整机已预热 15 min 以上,可对力敏传感器定标，在加砝码前应首先对仪器调零,安放砝码时应尽量轻。

7）将吊环挂在力敏传感器的挂钩上。在测定液体表面张力系数过程中，观察液体产生的浮力与张力的情况及现象。顺时针转动升降台大螺帽时液体液面上升,当环下沿部分均浸人液体中时,改为逆时针转动该螺帽,这时液面往下降(或者说相对的吊环往上提拉)，观察环浸人液体中及从液体中拉起时的物理过程和现象,也可以用手机拍摄这一过程的录像。应特别注意吊环即将拉断液柱前一瞬间数字电压表读数值 U，拉断时数字电压表读数 U。记下这两个数值。

得分：1 分

数据处理

重力加速度g=(1)N/g

  • 填空(1)： 你的答案　0.0098。
datafill 0.0098 wWsuJfE1b1f729tH8y+gO/VgBLoWBLT9TOKJ8w7aWas= HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==

游标卡尺误差Δ游=(1)cm

  • 填空(1)： 你的答案　0.002。
datafill 0.002 ePyklKdQ+KJ72Hfr3rNdFqA8SI+ym6avsR0PJkOxcmU= HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==

一、传感器定标及吊环内外径测量

1.硅压阻力敏传感器定标

表1 力敏传感器定标

物体质量m（g）

 0.500 1.000 1.500 2.000 2.500 3.000 3.500

输出电压U(mV)



物体质量m（g）

0.5001.0001.5002.0002.5003.0003.500

输出电压U(mV)

15.631.246.561.977.292.1105.4

表1 力敏传感器定标

物体质量m（g）

 0.500 1.000 1.500 2.000 2.500 3.000 3.500

输出电压U(mV)

 17.4 34.8 52.3 69.8 87.5 104.2 120.7
table 15.6 31.2 46.5 61.9 77.2 92.1 105.4 HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==
0.05分

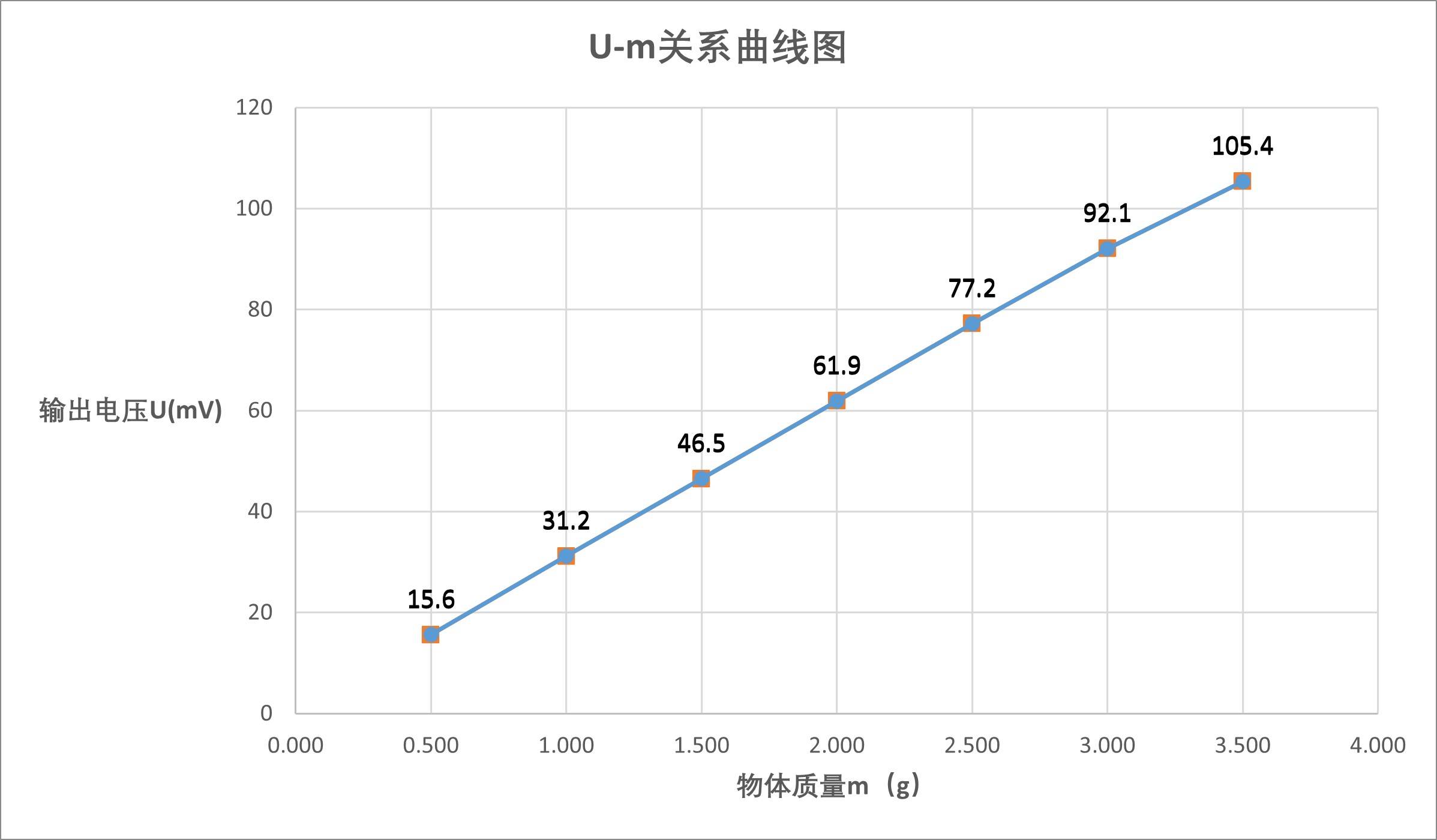

做U-m关系曲线图

得分：0.05 分

0.025分

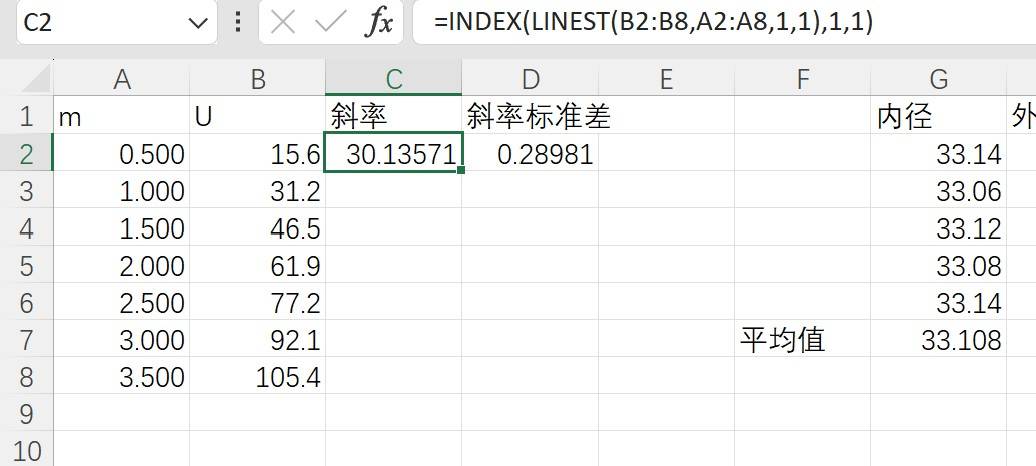

直线斜率的绝对值：|b|＝(1)mV/g

  • 填空(1)： 你的答案　30.1。
得分：0.025 分
datafill 30.1 mqdyLrF9FXNFEnxSaQLcg6C/mSjouKVRm/77hpo2myqqt6x2M2b7G1x8iki5S8/mjJe2wz017vHIzaFooJqU1g17dPtCZeCxMrY8J69XXmljE8gj37JdaxJThYIePTYHTqTZCkFt6MT9+8r/VOr94G0mm4O6F0siYgKs7oTVQW4StcmpnvL8kzjptWgNBszNanb5Md95Q2D7nMAnsUIafGazq29uUjZNXqLNBq3/419kV4AHLHddSgogB61rm37K0J4E1g/DvbO5dG1gylNFAFRl22mM7I69Og23Wv/I7JTb0gUwInHGSjPI6v+r9chidfCilU5qmay7CTWMxf5QN+227HGeKTCCC16xyUIk32tq1pi8niKOnGCW69YoAH8EsJLfzbWkL1nzYhxhRTHv/wx7xUVDttVmit6Rkw2JsYk= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw2bVjo5oBglysLVzNNXWy8LbGdi3O7PCJHauTlAKzLLQ+7rww/K7eastB1qQTIuB5UDoFSr65rhLEtMZQNHMcjxi2G+yl5EZwb+mWe7jPO9dMtg/zmhB18vpjSoR/vBrhPJAmRhR6PrlAsXsmSZtBy8JT3L3u/PeG5Zjr+7SYd+/qQ/syvcabmgAickMTAlG/q7LS5kpO5EqdrX/keWhjrSt2qCNVIoiHvGpDaAQKcdJaW2uqUj/lCKJ3F4m9xmZzKVYqemDgdNX546IPir7MqkcDJXTm/C+/EfTMOo+AALSw+k8SaFgGjIJq/994eIYYxDZGWbNcI380u40jHOX4nRb50eN/YAy+6Ymq7EagOKQfoPPWkP+PQMHHUuFLfFEoALsE8WFL8LOTvfSpGX+PoTyvc2G0E1LjtnN8a0tIvJ9Buh42vRhVOBi+OaAzSrSk1hiZm460yyqaVzlWTcKryw4XCn/8DNpXKqPT70VKIzZasjUrkon2JR9GttYjAbZBg== kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpSJOaAVA2l70GbN8nyRqlTceDxUbQz8DtN16GN21RMKgFafGN4yUqL21Eb2K8W9CfZPv9/wsOLT05FMpgWntq1lzh+55IrFlmQYW80qccixYH3n50+7iYu4cmDZPEpsV4CwIXjjPShJEdZXkUY+86Ve9phKRaFqaEIOjX2ovtWtvYY78YKt8vluPj4I1Kftt5tSGt9ag6UYrUMykPlZmL5gHnjoZZjRnZ+NQxPhAMRag== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=
0.025分

仪器灵敏度（请注意单位）：B=(1)V/N

  • 填空(1)： 你的答案　3.08。
得分：0.025 分
datafill 3.08 pTFjre+H0AdHRMpSo2B9taiEywROoXj+7z/pguBxq1ucb3gSwAr2RDECa0BkftSAxIOvjYaXuFdPZEx1MlCygW3TNPDCuhURBRh/xphjjRyRoAkh9NHSDay1Kp0vo6jM nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw1qJ5uf0j3RPPemIfBDLOnna6V94PqvN93RONEMfzS0ht4lJdZP1904B71Vtl8n5Gbcq9/7EdPTuJOlbRKeuFcz5S8WfRLnTHJaOGqah+1S52dwdvc6iWrxxcfNKnaXNW/RSgILxfJ2TlT4MO66wDKCwTjvovMoeivTBDtIMIvVYY3UqmC6OT6K+tocVd6DrGBQ2fMwZt4g2X8fwPrLpgp+JfTjsDK4HuZwi9Eq8PQgkgHGGgUknhtZ7mlE3/f14rGxZ6WRQS6jCuxxSMP2OeRF35Cg378v12mGsuqjZp8Wm133hd2bFpgCYNRPmEiAMZgdgZrSSBb1L/Y7fbQiqh2AptKGJbQEzYpXUDsJrHEz6E/XtZqhGMp7GbFqEaxY6Adkeg2yHuxryfuEOPl3tjKtv04nwNfKTA9cB9hDxI8TAobqOCoNzmHcO8pys65RkjikK/kwIqrHMVf3b2+f8rLSyMV2KWpNMBWxcbEgLZj9y40z83nHDV0HeP65OfnyoPv4Y9V0s8afGSElHnjCaIdw= kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUqeaVJMV/ibGpZ0Vn1sKaaCg5ozuwuX3G7A6n7NWvN1Bwr78hFbZrbCDIKsFZCmXm5knRFTuVZ0pJ/I0DRHC0ADOvnREO8VEtwkCCYky4Lk+IK7yyF/cHC9DfND9FeOjk5NEYTaC9ZKoNLcY6EgIRiZYTt7oIU+ipgdzM9ogSw7MQmciUXZCRtjQ9Ti4vQ4/Mfw35IxR+G0oU9M9Gv1j+6v3fSOCMr2wAnMQJo8hRY9KQ== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=
0.05分

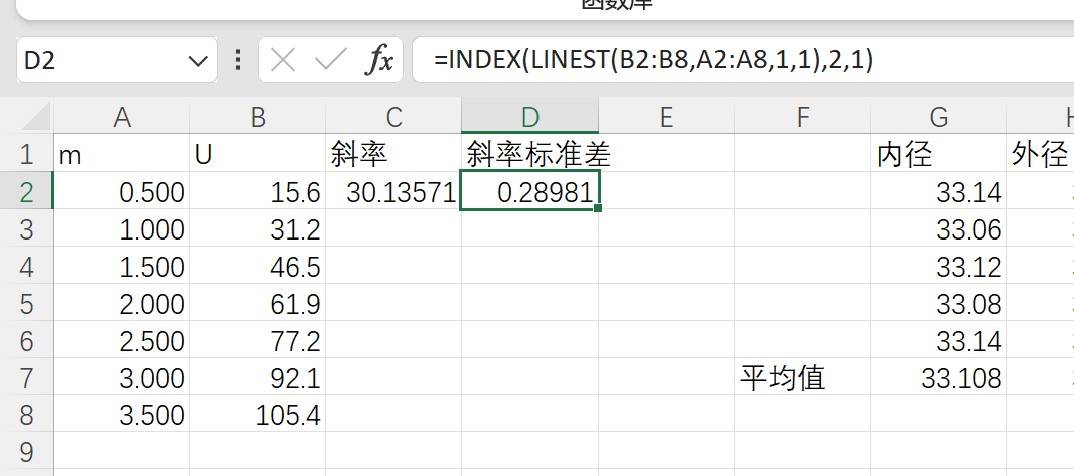

直线斜率标准差：Sb=(1)mV/g

  • 填空(1)： 你的答案　0.29。
得分：0.05 分
datafill 0.29 mqdyLrF9FXNFEnxSaQLcg6C/mSjouKVRm/77hpo2myqqt6x2M2b7G1x8iki5S8/mjJe2wz017vHIzaFooJqU1nRI+MTwVu1679j1t7fXQqDeDE6vRSA56G95u9HIaXILFmWSXQze7aPfvhNNI/AVGTs5VfCt+5+onAq8CIpjBf/8SvqhBqYPuSCwsb0MJe1o9ViU+HUrxp9Jd3iaXSwbPnP7t8SsHtOvfvkfLGTUyYe9j48xKLHUbesuD3ujDq+YIPUErmZtQmvwxn3wX3rNaFuDNJp28G65Rw4g5qF+XZ7Hzcblck1BvnmnJ/Or9AtWVHYuSHT48LVZvh6LxmP1BMFb3knuXW53bO+8RojommhRvPLvlnGQd5NMeu7fMxW6J87AQ2f2W2xP7sFw1vR4Q6MlGnwpm/V7gHviUtN3EjeCCzv4D6r/vyMd1MBesZlGX2JxTYY47B4g9mHG1BW2uXCJSODU0Ffq7I+fe/vbIy5B32eWpq+EfxT/Ypmo8SOzccQIGgSgHFHqNUDng+T6obYT9Qfa6Ti23kIm0eRURPF+1nDMjiwpmFGENcbxo/0zVESD6rzMvX1QAazFBOndnID7D+q45efbnfjtVc97uaepp7+kdU8K8hE0TbBh5d+dUcanXxzq3/QGW9CVGxPBBEbut9VckDPTLtEtRaJ+y5IQrMDNsfnSDIqY7JaW4Buus4QDXwDRex8p4bdS9+LKWVbZp2AMXM24R7B+Pzn2MDw= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw2bVjo5oBglysLVzNNXWy8LbGdi3O7PCJHauTlAKzLLQ+7rww/K7eastB1qQTIuB5UDoFSr65rhLEtMZQNHMcjxi2G+yl5EZwb+mWe7jPO9d7r28KffOwzSidwpXQ9BV17XzrPO3gBEu8VnFozbhSkqHLmUcjebqwCkwHu6R0GSAdQP79c+RkI9S2JleF31Ed76J9pC9U2ZU2t77yo/O/OwQV5/FOc83LYAlGVwmpLOFpVttSZqhSZkknNv3//1puyk6FfLVmtL9ffXyV5FsILkUH1ucgeWrr8zkr4WE7mjCimpKvNys1y1PJKLpOBea+v5uQBY1e4kCeVs6TuCshjMH6yP2jwNEkw4mdsbj1A7Ku/fW86sLHzq8+Y2pYdqMb03OIzHsQpu38msycw4Die3diI2Mr00OyomH27jsX9Xs51JITrVKzR6PXjrQXZns5tLxH8uvpEnBOxkJPteML1xJIHwu4SU6Af1lbpb6LVHrtUjogWjNmzZLYiiLWOuiIw== kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpSJOaAVA2l70GbN8nyRqlTb0XTi4jWv7/CPGM1FcNNpG8kyix6QkVeJfOMUzHEiKIQaBhk+sNX7Niq8qseRBqiuxBTBRRESDO0TIXLfMH92S0LjS0zZmJ/84uwpSEeVt/9HHPR7i5DARISP8rbHFlIKV7G8wjf6NmHggssR0TvktSkEYBZ8dFTUGP4SGjgjaZ2E8kc++TMn1ZkGvAV4k7vICG5sMYYIaVbM79DKEh5Vw== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=
0.05分

则仪器灵敏度标准不确定度：uB=(1)V/N

  • 填空(1)： 你的答案　0.030。
得分：0.05 分
datafill 0.030 o9ffaYima/b81Y5fTNLvfWzZEIyYXPC5tb/Fw7CVsGItd5MfUKDlSh+oIuF2EUVcyPElDezSZ1PBN7/xwhh/I5YZhSj/PB19bx1T0q7lQim/CLmq9DK1KXuSwm0l/MNG4Y6S6x9kbzi8zgzcAoFyEbzE5FAZqEjZcZF+QHSf4GAKn9M56WorTKS8RW7Fi81uCC96Etagf/aidFjodzOHX0dx/xrBYZJZ/VYu2PCnQagdT6PHzk4wqqXlK128DV8fxTCwSeokcx/Ou+XFBdgFNQ== nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw1qJ5uf0j3RPPemIfBDLOnna6V94PqvN93RONEMfzS0ht4lJdZP1904B71Vtl8n5Gbcq9/7EdPTuJOlbRKeuFcz5S8WfRLnTHJaOGqah+1S52dwdvc6iWrxxcfNKnaXNW+0T7DWQTtPjPMIsTEC2Oohnili3Sq+gUDP/KwPnDHFeDbo+gnYecnSMjXb4QeuIVxfUKjuTKrton5Am64mhOzV7Ki76v9eU4bTMROtwfgnumTbj2kOtohmXnu+3R2rAgSuVg6arBbWzzrJzw5Jwp3VbPm6eEF9Jodl4O5H6D8uQAA6Gm57r1wrd5wxEGQ9v+Qk0FMwszN0MrtIW3tiEAtFbzlr0Izev7vvRfVsk4ImU9t0ZEhdeBek9+3VKaemQfPxjffFYuXJL2Aci4FzqiQF9bHabykNKHWS1nmWSnh1nfwLYzlsAOsZQb/XEb5YNLSh0xlnD/z0X+YdAblEV+ZC79pdZ3Wu4bvoHqJnR4k2yVi7TaH4dLpMv6zJJwS3h2fLYKB5+vSuP47C/Oo7bTDQ= kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUqeaVJMV/ibGpZ0Vn1sKaaCcbYvwVPJNXivDNutWAbb8yNKpZKFScgSG0sEMSFeP076HCR7VLcRNBiVSHGiiTAhWG3uM4zkJ5waBE3C5zIVckRlsw8feQ9wi1BE4vFztjujiW8rNt8q6m6j7mKpEu1tIFKoL2oYEj1n2SQp46u+CjgKmaZxAp8s1mrD2eZacb8MliT1KZqQvZ1cmtKt4ObDC4QqXiG2UwPVvX1YrLG8Bg== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=

2.吊环内、外直径测量

表2 吊环内、外直径测量

测量次数 内径（cm） 外径（cm）
1
2
3
4
5
测量次数内径（cm）外径（cm）
133.1434.92
233.0634.90
333.1234.86
433.0834.92
533.1434.90

2.吊环内、外直径测量

表2 吊环内、外直径测量

测量次数 内径（cm） 外径（cm）
1 3.320 3.384
2 3.310 3.390
3 3.312 3.388
4 3.318 3.390
5 3.314 3.386
table 33.14 34.92 33.06 34.90 33.12 34.86 33.08 34.92 33.14 34.90 HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==
0.05分

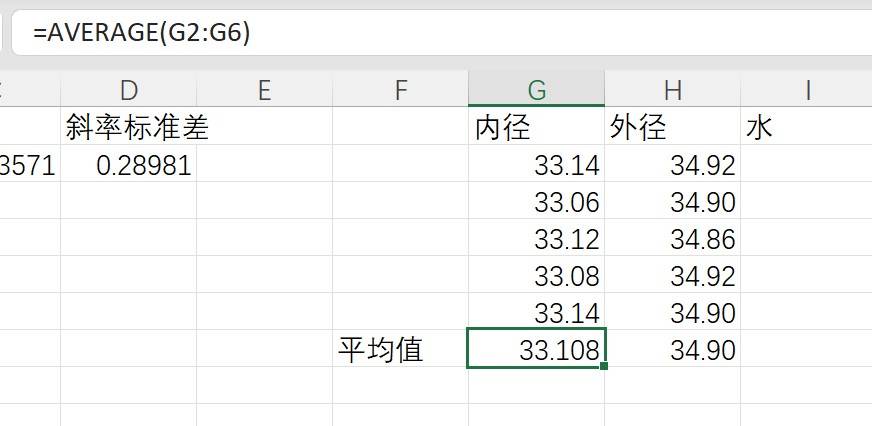

吊环平均内径：D1=(1)cm

  • 填空(1)： 你的答案　33.11。
得分：0.025 分
datafill 33.11 mqdyLrF9FXNFEnxSaQLcg69NyDn0XNJ3scjeyO/TEKYswFSsfV0gbjd1Rof8GXFFYFogGwqJZy4ejp0i8N63IUvals7BFpZoJbHooWdJWe6Z1aSN/l5UIrijFEc3wDPQ8qwtP0o5+dYLI2PJAIHw8Kx0zIy3V2wMAVlL0bVtKbjFYbjC7kokKXaCBPSaah9PawfYorU7kgjKQ1POlbLeuM+iz/FwZ/qA5FuC8VdUulY= cDp6/Dlc0FDovcBzVt9CycM3u+MD2TUdq42s3iunh5STYRUI8ItK/AqjcxAFZ5Ya0R+tsHFejy9H1q8KRXS47jZ8etq/H6U+gBrTnMyYNi14WU90Q3GUjpEdQgs+rCDBh1E9wo4nPbBcgfpdiW/mM4sLVz6XEa05tQ25XogmOpfzADr9Gy94O8voOVR4qMlopn9b7mOzNPGXpmT30gvju2KcNdqErLXdUbym2PEJEe2DRk3fGW6Rv46hiREhrhFNGEGf4xuuSLm0Ys47qTdtVFfNkfoJE3BT+L+5t0NLDvr938s0jjXXu9O19CYlveTqi1/60239FpR24tcOHqBeucZYiMxf/DHd6MPmL6zhL2MrcF7mKejppRbuYqCBYCEn6Hg3nMB+T+L0aF3WqJqNbK8uLNs8nz3EkXUEOjjvoykCZMx54OHiGeo54DsQk1hUZRVNL44Nxzvo6Ej5LhJ2cjxNUtC0qOVBzx/QoKWkv12kLrHubRKVkT8xi2TWrZs4Q/Mh7biTw61Y/azfjFSli+/TcTGRu7MaA5jeRuRahimZs7y6Lw7uHzDSY0BL5FK56vbGvpCo3A5aytvUYwWCGq952MCRVq3bivUhkIxA4x4= kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpSJOaAVA2l70GbN8nyRqlT58NNzb7yadUx+fL9SF/eQ3wqciCvdO0th9O/3Jm2vjAaGHdZ2NOir5ENBF9eRrmroGlEJetxM32QbikG05gX5X8FOkiU7qQ22JNWpUGyIUfEQpi+ea+8W7GvxyJKTP4Ns0n2JRrnwX06F67BEQ18G3eP2MwMLJk+MVscHLSBYQeCsmTBWDf+GnjWAt/qQOfths+R1VfYKWpuBaotXlxZQQ== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=
0.05分

吊环平均外径：D2=(1)cm

  • 填空(1)： 你的答案　34.90。
得分：0.025 分
datafill 34.90 mqdyLrF9FXNFEnxSaQLcg69NyDn0XNJ3scjeyO/TEKYswFSsfV0gbjd1Rof8GXFFYFogGwqJZy4ejp0i8N63IUut8atw+BDyBVDmDHQjO4WzXYbtdPqQCF0GPPFJE2NBNqx4gKveYjxD5ktN9HMGkZWSFFp83Y+mb8yt17+jh3KSWHiPAnwWYRZsjv7lrhozcnxUmHcJhvmP48dn60+j2t3bSTSRg40pyc9cJ4c5lKs= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw1qJ5uf0j3RPPemIfBDLOnna6V94PqvN93RONEMfzS0ht4lJdZP1904B71Vtl8n5Gbcq9/7EdPTuJOlbRKeuFcyvYeBPNF2k3eI/ZsrLFg5Mn9Fy4Rx957mvkvmt89wBnG27dcGrzQa2n7wwMLKvKg9s/XRxRf8p+khG2WnsVWbJymE3XbcEMix3HzDNR3sEYKRagGfn4Uksev4uLz4/SUdsPawz7Nrth5j7R1Ifrh9yXrSqI5Nlu2ErRdvJ/qH2SaZPXwkRQVAx36k3b3/2nesrxJQrIDPxmMTiqawBWeR0m5cJ81HRwyfxEQc9M/wbriuCHvXnfiduRRZdOexcM3mJSXf9nt5mUK07oBVhHhtzbEAd2ZMde4ZyCu/qeqY14gOdR+gGUc2mk0iFjwdG519weghPwU/fHoVgmIv9TYr0iow6bQ1vzw7T5r+wzbS1QzWaBC2SY770OlPMxR9PNRBK/lFrPGIRP5CK0EEViQMSLfSPqD5NyXVjOfxpDjTPtrhV9n1J/sYpwpSeEwHbHH4= kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpSJOaAVA2l70GbN8nyRqlT58NNzb7yadUx+fL9SF/eQ3wqciCvdO0th9O/3Jm2vjAaGHdZ2NOir5ENBF9eRrmroGlEJetxM32QbikG05gX5X8FOkiU7qQ22JNWpUGyIUfEQpi+ea+8W7GvxyJKTP4Ns0n2JRrnwX06F67BEQ18G3eP2MwMLJk+MVscHLSBYQeCsmTBWDf+GnjWAt/qQOfths+R1VfYKWpuBaotXlxZQQ== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QC8HAOPhv8c/oov7/+3c/i0=
0.1分

吊环内径标准不确定度：=(1)cm

  • 填空(1)： 你的答案　0.016。
得分：0.1 分
datafill 0.016 mqdyLrF9FXNFEnxSaQLcg69NyDn0XNJ3scjeyO/TEKZ0f9b2VrV2rVx5S8w3W7zhzZ1pPiwvcQON8B8iIGvrdAb6IJrbD7wPdxxhL5vNhXfWokmzVHisNs7ltV+6xdIMhwi++YiIPvGw+xRgdQ3fNiuGdm/F1STV3vtJtPuZOoJCgwoNR/VdUb+eUjJ8TwY71LtgHrYNc9W3HfSCO9S62NBM+hdflr5CBuYU/SZwFDWjUGM/o424InuD8+XX7pk2Y1KIjWI1dDflfKyayGjfFfJJrlgat4TU6HnCSVY36wQfotN9f9+5bzVxCaO25XRWvDS7IaT4OL+1QYIfq3wHF1/SCQGQpMnZ1QsiATujGs9MQMGB0+NQtdagcI/dZ0HCrmvAA+JB0224Kxc1XhlTTuYQ46ut4YyEIeKsRsRrW6y01I50/4XDvd4MjSIses6840EyPu0MyqO2iSWgnXLdGJqphMq25bDa8Z7Thc23+cutWyKKIk8XNO2j4HZedZocxaBEktCiItUU3I+rWPT4FJeRAUNFvlbYM655OdfOXsVOINW4hJzKUNQEnhYQNLGjqMB11vyZ4sdsL25jtJZfYkVgnXiIsc79CQZhceUd/NM= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw2bVjo5oBglysLVzNNXWy8LbGdi3O7PCJHauTlAKzLLQ+7rww/K7eastB1qQTIuB5UDoFSr65rhLEtMZQNHMcjxi2G+yl5EZwb+mWe7jPO9d7r28KffOwzSidwpXQ9BV17XzrPO3gBEu8VnFozbhSkqHLmUcjebqwCkwHu6R0GSAdQP79c+RkI9S2JleF31Ed/TmBa3OCHRZxExuteH4E8re/tkAw0+PnBz7B63iRfRAFMbxDPjF943PNBjmfuLGmlZeGaIK+CAKJDHRxQ/YKbpyS5xw5CaMO9m7fJ/OJLc8zdN4v54O8juuevzUwqeuIkNa7bvOPE2sO3tfpqRXhaYYgt8TPeUGMqib7MbK1yWZAFqwZ6c9/hihE9DL6AXqBZrNS/OIxrPMrohZ0BcXFwPv9yYdKJonOSks6d8PiF3dwvG4zm+xef3yWySDQruRVfaCuiRCS3GBxpqwRDp+3jMw+oPLYAj41e5Kz96ifGdgT4Ngl0Asp397AEJF+5frkfqXDZpoR7b0+nEfyFtBy4sYQtha6+0K2qeWxgYBHN5+ kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpSJOaAVA2l70GbN8nyRqlTU9BklqPbEi69b6heObFImODNoZnTgND3GQVERXbeE2pIu2q2+MYxQFoIGJxbF7ldPXkOr5+6ZCbGqnQtQ4R8oQhsjcwS3/Z/WwHiW3bjdxqxMjG7HDBwpVfPpmARdsILT/ibtFzBtBWOqo+c6b+tdPLhfcYinM9Ff2b7FTdyEM1+TKAOQqzz/bosn0F4EuLgDpBwUgnMnjgm3z13+0eUX1rx5/OYg00fH1DWUpUs5uc= Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=
0.1分

吊环外径标准不确定度:=(1)cm

  • 填空(1)： 你的答案　0.011。
得分：0.1 分
datafill 0.011 mqdyLrF9FXNFEnxSaQLcg69NyDn0XNJ3scjeyO/TEKYswFSsfV0gbjd1Rof8GXFFd43/cA/XucZ5PgiE/i02hWkvVVWPL1LWkZBqEQ0wCq9Mp6NAewgQVKgT2ZOlG2b7n9BWpWaa8CeggA34w4b5WfNVMVGyGGsKy0iTywZwmV5NRZp1I94SzJYfAbAoXUs7c2s3Ues0jwa5/ZHSd1jKhNESk8Gr4PUpxDsycyugaDrqflYYg+p74RFfWLskmq7odImVBxsmmTqiaXYIuAmEO+fc0LTumnwBAeW3pBR6VhQdndnRQQdA7e+45TOxpxZyZqU35nBceHVgr2oYHuZZOqxXzdctxmdYquMSQyJJOUol7SoZTB6kp9Y6ci9016qk0dWYWfdgqqMFhZKkpEPvS/4ZP88DsQ99dNtzT/FgeBSbHKBTqlkexMzV8hyBsCnVs8zQwFr5iHsbITctLUrVMg== nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw2bVjo5oBglysLVzNNXWy8LbGdi3O7PCJHauTlAKzLLQ+7rww/K7eastB1qQTIuB5UDoFSr65rhLEtMZQNHMcjxi2G+yl5EZwb+mWe7jPO9d7r28KffOwzSidwpXQ9BV17XzrPO3gBEu8VnFozbhSkqHLmUcjebqwCkwHu6R0GSAdQP79c+RkI9S2JleF31Ed/TmBa3OCHRZxExuteH4E8re/tkAw0+PnBz7B63iRfRAFMbxDPjF943PNBjmfuLGmlZeGaIK+CAKJDHRxQ/YKbpyS5xw5CaMO9m7fJ/OJLc8zdN4v54O8juuevzUwqeuIkNa7bvOPE2sO3tfpqRXhaYYgt8TPeUGMqib7MbK1yWZbR6R96GieR10TQ1X7uqAXCl1yqjLmfEwJFhIp2+wj/TGJV6iNsRuFT0qXXIrM/Bzt3Ftf6/ITylfdymVus40e9OQ2iM30eThBT0iCXhFj1sLTp1i1k55T+Mcg32sQ5f71eo5OUjg+ff/gdZeCNyhsoAyNGHycLkRKcjT5YNCAzhHvpzoeV2WUSsxAvJkODvu kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpSJOaAVA2l70GbN8nyRqlTU9BklqPbEi69b6heObFImODNoZnTgND3GQVERXbeE2pIu2q2+MYxQFoIGJxbF7ldPXkOr5+6ZCbGqnQtQ4R8oQhsjcwS3/Z/WwHiW3bjdxqxMjG7HDBwpVfPpmARdsILT/ibtFzBtBWOqo+c6b+tdPLhfcYinM9Ff2b7FTdyEM1+TKAOQqzz/bosn0F4EuLgDpBwUgnMnjgm3z13+0eUX1rx5/OYg00fH1DWUpUs5uc= Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=

二、表面张力系数测量1

液体：(1)
浓度：C1=(2)
温度：T1=(3)℃

  • 填空(1)： 你的答案　水。
  • 填空(2)： 你的答案　100。
  • 填空(3)： 你的答案　20.6。
datafill 水 100 20.6 v2J7Uc226lHUNvl/hBUxg6oN5cbB9YLTqefEBO/9Z7I= HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==

表3 表面张力系数测量

测量次数 U1（mV） U2（mV）
1
2
3
4
5



测量次数U1（mV）U2（mV）
1133.0106.5
2133.1106.2
3131.5105.2
4133.4104.3
5131.6105.8

表3 表面张力系数测量

测量次数 U1（mV） U2（mV）
1 43.4 0.3
2 44.6 0.2
3 44.7 0.3
4 44.8 0.3
5 45.4 0.3



table 133.0 106.5 133.1 106.2 131.5 105.2 133.4 104.3 131.6 105.8 HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==
0.15分

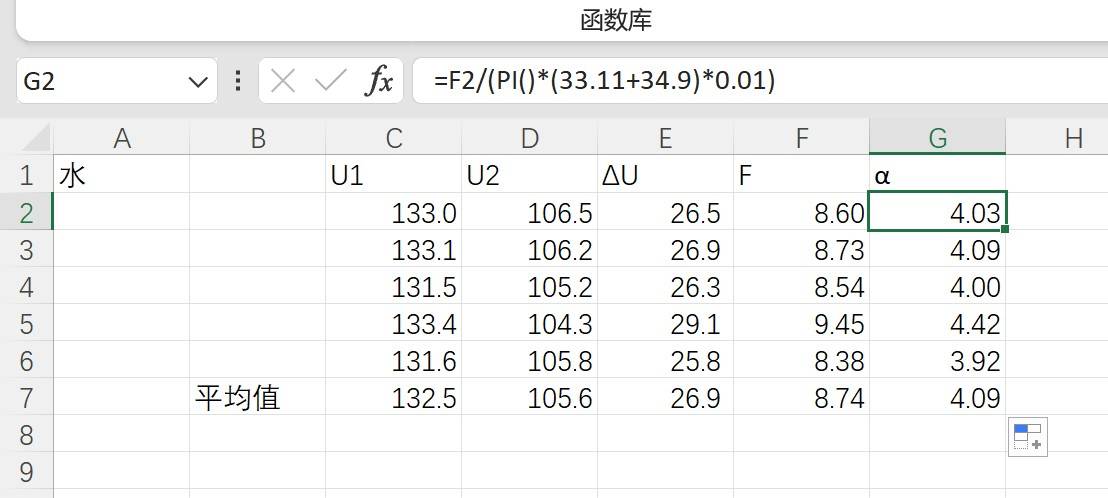

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1
2
3
4
5
测量次数ΔU（mV）F（×10-3N）α（×10-3N/m）
126.58.694.03
226.98.734.09
326.38.544.00
429.19.454.42
525.88.383.92

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1 43.1 12.22 58.06
2 44.4 12.59 59.81
3 44.4 12.59 59.81
4 44.5 12.62 59.95
5 45.1 12.79 60.75
得分：0.15 分
table 26.5 8.69 4.03 26.9 8.73 4.09 26.3 8.54 4.00 29.1 9.45 4.42 25.8 8.38 3.92 YZw189ktlC78g+STJSMyzzODCwUimuAtVyviMhjNh7Bygb1z8oecp4+YaFqI46dLUA0tMGpSe4MzrfkffJIEnOmLCCoS1ImYbOVSnemwATou+KzYbFlM7kHKtCrI7XV9PQnholtDGcLYNiSp0/vnamKV5+RKLWrmDADVObjbnVvzcg/Vm66kGtXWdLyx6TmorBKhNJJ1OzuiXLq/HBEbfGBYs+TFhzV29mybWgp2xXLr9Uz9ZlCJO8zoJoQb4b+chw3SOMj+/VMM8SUax56aZjV9Uj3Yedb3HeKzoq7ieTMvC95hPAzTPgOpHNU387v0Pk0rnMx0G5cvP82XM1ur1hU6VUsrGO4FrMO+hole9NGsrNquPnRt8Mer8yXyxU0CaWtIoURGgh6O/z/16S12q7a7JSi6TSmnJVccDQcJ1km4lUUIZVDkrxqNHQi3CIfPllhS5d0kDb9xxYvAPSY7RKNYGfDrTmge43mfxkWBBPJwJVGsNrVgRtI6kHA0r6dpvoFbcI/WPPvMLbi40V9+ICwvoVaXSjY/1ApWSYn30wJB6YvkGgjP4FNCXZKAOFsXi0RXVt0hMUHCfjVYWH3uULLfuaJ1HBYAtgySinNdiqzpDER/cCu/1utsD+O1d0i8UJf4JZdVsLcAbpJ8WHFJQsuqnt8+/5Fe+xESZeU5ktM= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw8WST0Rdglg5VdOfWUlOZsXunBExCk9dAWUqDP0iNWLDpvF27tJ6H//yYQSfZEpFTh1h5K6HBMz/FgQySftEVeP4AIEbwgWFp9oz6oPWlrfs7vPBwx/tuo0dNAIbs3P42Aq19YsiuNV2QtpbDWvN0XuzJ7k04oJ6DJ/yed6e8Qm/zWgPwN2ZqjeXuAPtlnN4+1NqwbgfIrPb3G3j8W7MxgWv/Ufv1NPz3peR3GwwBttTkvxI60JHkCZEflIyfo0iHfKhDve7uRn417ij0EjSqCCaNJnH7Td8TPgkbJr7tyj7AS7aURtR7wcBcKApEShkoo1/MnMD3sggvpJPSprULvjWyWvcbxIXgpFymEPCrJ3ZpQvjmeJMBAClu8WJ4ZeB6WDyLzcIrzNPdkd54xNbEmOz2v5dPNrrN1rVw64FtXxXyB4dUY2Je/IHAnri5YxafLXjvUEK/xWwlDU4E+Ol19I8hC91rgBSnM6+IptfO1VEsl5Nv2/Y8XtFR85peoSY1B+EdivlFLE+wXT80968g+Hw2NYtKJq+ZB3Y+uYt2W1dx+d1RSpMdFTzyXfI6t65+8CMi1Eq+PfzI6bm75Uxt5WB+lHUSs8jDF8CF4UAUHjJRUmPwleju/a7d9JJN3n8PZAW7wP9qBz0k9BfTXK3YjQMJ4jJkyMXxEmajodta7XjhaadD47WkM6CCANYxY9nT1VFBek3EDhwjwXH88Z7Gka/R2imwe6ycnm6tasusSrvKMwFdV7CnyS1osILssv0CI14g7Ol0TaXLXE9cMu5oOdm9yW6hJif50rBZe6SicX/7ClufF8HoC/BBTsRAWzORJJCssQqDQJ+oOWJ5echIQXga5EXkIakvXkERPiGxJgzn6u8hhwJL8fYRuzQMqlR7l8yZDxIgifc0MEhPXtM51MMQOp84cruDWTobyyYAuQ0lcTHmtWJp+wnb0rA3rFzm5lnS6aXcM5EItPzLFM02ZnnvmlInb3MY3k+peyJAVBRtG9i9wFSzWpEMgRt0K/p26ox5ouyQ8vkLlJNSzKMtkQmHvI8dlx1X/jMiKSVR00x9Dsfhf9lKBg7ef1P1H6SPfqJ26LiGp6jY9lLDZ8oxQ0XbmgnQOPw+ZvywqnUgN5wxP/OarKrsFaXIoS+Ji1VgDlwa4oixU0WjuBk3LMs4+YjdZyGRJUoeUBgz7DPbUF82cJa7/Qqx36K6uib0icjZxm3xIsoRo8zWhzBgFqeQfZwJOZfUpbKFG10VnP2FsUB5DnNLwDXSvEUHqxD1tsku1NZjZOCYzXBSRVXS/z1K/qQq7LH01QI6s3C/pTM2/Tnd1/hoMi5fXXCL7aDczLlBwUQyxxIjrs08uevHA9VNdqLsu6zB13vPwbjQG/1nBfbP5ueUOCnxNivY7nMtl2z2ruw9iGZrwbKxWcTZrOI8bIAXE2Xw4WQFspnOy152XULJpKh5uAuJWUXrUIwEkWDzWw3J8xs6yBjhQ39xh9ydhVyLKByRgfdMt7VCll8XcpdZdUwownjG9+Wo+SviaqqA9KNmikU6l7gzXo1WFMbjapxGhkRbzrcbNjJHkCcWA65lY8SGba+tQAVTEE07Cy8124I/bGc4nKrSks7q9nc0jScs/Aa4JFYTuwHqvwYaxWzJDi5GPsM3jqME66pDosWR0o64+1AnFYV8kv/Cez1aXxGKudPatnbrwx9RZEjILv1A92pClLMn2ASyz7tFlcMZdswNyxsoklHhMSbYMuIQpEto9wSB6+AFJ6GQIRRzTpcBo1L3z1Vwd2jfTGY245yANdvqBoOwYFEf8GzevKFd9le2h1t9GCu2Fw8rDDpotebCGMv54ANSyFEBMXN2ibvm2Zn/e+vvdL4F/UbnO8ajPYCBYVScg72YTd2pAzOdGBXbWcBEez4PYuS7Su2MzGs6A== kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpT2XBh+673Z45tZP1iqD9djwgprNjctjD6UpAehSTHePeMssisuqAkE5e6161lCzY6APK81rYuEBs2UUHQEYUxoa25if/TvxUrRHN0P9qP+h00xDJpFCRaeFgVsBHMNcRX6jItIWC48ddMBTlYWMeY7jZwiPjj9LS9T1/ePyBaRZRI5yptQLaI8xBYbLatNt/XVWRz2e3wkVr1JGjPTwnq/a0IuWxZPv934Gok0LZIbsSjvykJK4WxlpLA1za42VSXjrpCvQZDkDLIORYOiLolrGl4BDJrdGelUP7HvXTpM5LkhgBc9aLxV/H1xzVonNHQ/qnPxIJryfoqjU1xwo2OuHMXUuTN/+i2k5Xj83C/VSRMA4wwJ3HXMomaMprRazFF4mUKQPhz0TorzWivitmUvE4wn2P26ne7Qwd4ko7x6NZqQG831SxjN6zpgrTWPT5/tgP64orKoOGkFW9O02Dzl+htAQylil0b0do4xdXZUToBLidGLncKCD+zHHC0GaBi8O5CvlHuBC+5h+qIL8QoHOFdYEYI7YKtgTMZ9GgXCA== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=
0.05分

表面张力系数平均值：=(1)×10-3N/m

  • 填空(1)： 你的答案　4.09。
得分：0.05 分
datafill 4.09 /43JeE/wVKgTdRHKIgK9PhJABoO/EBoTZ0ZRxTaAjntotKWm06iqDasmjkml3LrHN30ukJ6VAzuEmbtwdRv3QsDeCzntYUN6hbuk0X5QSGhZFILUiQwtYgfXOi4635ti2yImohACcxM+o64n3xwkjy+1SELeMqXZUowo0QOvzfKDKu4oHQlDnem+oV3hL+QSnmnd1mSoiRGcIVpBjapcr3uJn+pFzoU3h2+NzUkYuFk= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw2bVjo5oBglysLVzNNXWy8LbGdi3O7PCJHauTlAKzLLQ+7rww/K7eastB1qQTIuB5UDoFSr65rhLEtMZQNHMcjxi2G+yl5EZwb+mWe7jPO9d7r28KffOwzSidwpXQ9BV16bYLWhUi0esc4MXBt44V5wO1hqvYdJnAZ9nurBjo8HDChEcryJ2BG2CtyNsTvYKVESAd03xPJgnIbDUq47ZNiYTrjUgWUvVrpsHSFVM7YLId9gGPn4t2mdykxrJ5wmI0o0/N/HV2Be1sfKalicUwj+u7hZhMell9w9bLxpa2h0jb9Ye73TpsCzZUJfCjsjD5KGmPViZd3GGPLqfnpItzorJ0287lH4fiPTor2SSLwfa649l5Id/T7CsFWxtaFcvYVWkKtN31XTJBiDE+jWIEjnzZKaRJudxqSVUR+HQ/VAnTfj5Yy2hDAV9TtOfcu19DuUCGAgqpxI7CDaEuegUtkW4gyHGhJYPzHuLiA9epkze+XOyiFzRbWfU9ABuRrEtT9eshIqqddEmU5AFezRmjBOa10YWCpLjXP6vkNJCaBPC kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUqeaVJMV/ibGpZ0Vn1sKaaCYowrcw1PjGwIp6zitAFzFUZwCGvx8W2hPTBrydVyjaDwcitQh2CtTe7MH+V69wK2fJwAuw2cM/LqAmaHr1/LkrSAJRNSjtWEWB3YOC6NgcUhGhw/3OSAyCL6cSyD4lrgWWzJwsYz4OoJpoWf/D+JEn9uWhPH1Fs1ZDkLOMXzyAh24GS1Q6/GmpYulbpuqXAM Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=

三、表面张力系数测量2

液体：(1)

浓度：C2＝(2)%

温度：T2＝(3)℃

  • 填空(1)： 你的答案　乙醇。
  • 填空(2)： 你的答案　100。
  • 填空(3)： 你的答案　20.5。
datafill 乙醇 100 20.5 pRFw/evUdvvpLXjjekX7RR60p1ZfS3hBFPv2ERLGCQWDDFa2NS4v/fhe2tlza58u HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==

表4 表面张力系数测量

测量次数 U1（mV） U2（mV）
1
2
3
4
5



测量次数U1（mV）U2（mV）
1111.194.9
2110.295.1
3111.394.8
4110.994.7
5111.395.0

表4 表面张力系数测量

测量次数 U1（mV） U2（mV）
1 25.9 0.2
2 26.7 0.2
3 26.3 0.3
4 25.6 0.2
5 25.5 0.3



table 111.1 94.9 110.2 95.1 111.3 94.8 110.9 94.7 111.3 95.0 HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==
0.15分

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1
2
3
4
5
测量次数ΔU（mV）F（×10-3N）α（×10-3N/m）
116.25.262.46
215.14.902.29
316.55.362.51
416.25.262.46
516.35.292.48

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1 25.7 7.287 34.62
2 26.5 7.513 35.70
3 26.0 7.372 35.02
4 25.4 7.202 34.22
5 25.2 7.145 33.95
得分：0.15 分
table 16.2 5.26 2.46 15.1 4.90 2.29 16.5 5.36 2.51 16.2 5.26 2.46 16.3 5.29 2.48 YZw189ktlC78g+STJSMyz4XtQBUj5/zGUKV89oXsOpXjQTjAk9WPVsJtolN55NwsdYLD9BPPU+HhiH0SNmNoFApdUkWB8gweN5yLNt3uNXD6RfhGuIIysQ8I5a/X3ehMBhUwBhfZPNVNKeClzBL73Vc2xH76+b6mDfeZBtCzltQj5C8J11f6j1L2FxeLanWB4Yc+TFClpJcT/8ocP49Pghm6G2g6ZM2hVzTficbJDabWmc2Zxc1lR1SoyLaXrjr0jHTtjPExpwIP7i7nmPWNqyx/JHptQnEaGiOLmqp0mu2KetJnBLLGJwdVpY0jfwEuUN5S4oiscKoscfSwRm0OISIFy1S8EK+y5SyasW46opS331xrBOtKdV0rL0rx95WVzwr3EsNtDaJzbYatR8MmVG9hIFtwIMUUErMrf35Npr01sDLdKYabBtfRBxrMWhfrmrj2C9lNKNEN8DLL8Hcy9aYrhKVaa77/c/EMZ1APuK3MxosfqpGtzIwcLMQMLSSljNlUh5/Hbt/8cejcpibdlwxgKrTGeJkWwYFENX/r3MUlnNkqdCNWmLb8pzu4hfVU5Fpj8gIWzHooSMLl6fv6ZFuX12SWUHBrWkuHOw0UGl07TkvlKiVBuWGa8IMmpahxDTAEhiYx3hAlRPZVO4nOXMsV0twUGaVPnykCmeUBh0A= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw8WST0Rdglg5VdOfWUlOZsXunBExCk9dAWUqDP0iNWLDpvF27tJ6H//yYQSfZEpFTh1h5K6HBMz/FgQySftEVeP4AIEbwgWFp9oz6oPWlrfs7vPBwx/tuo0dNAIbs3P42Aq19YsiuNV2QtpbDWvN0XuzJ7k04oJ6DJ/yed6e8Qm/zWgPwN2ZqjeXuAPtlnN4+1NqwbgfIrPb3G3j8W7MxgWv/Ufv1NPz3peR3GwwBttTkvxI60JHkCZEflIyfo0iHfKhDve7uRn417ij0EjSqCCaNJnH7Td8TPgkbJr7tyj7AS7aURtR7wcBcKApEShkoo1/MnMD3sggvpJPSprULvjWyWvcbxIXgpFymEPCrJ3ZpQvjmeJMBAClu8WJ4ZeB6WDyLzcIrzNPdkd54xNbEmOz2v5dPNrrN1rVw64FtXxXyB4dUY2Je/IHAnri5YxafLXjvUEK/xWwlDU4E+Ol19I8hC91rgBSnM6+IptfO1VEsl5Nv2/Y8XtFR85peoSY1B+EdivlFLE+wXT80968g+Hw2NYtKJq+ZB3Y+uYt2W1dx+d1RSpMdFTzyXfI6t65+8CMi1Eq+PfzI6bm75Uxt5WB+lHUSs8jDF8CF4UAUHjJRUmPwleju/a7d9JJN3n8PZAW7wP9qBz0k9BfTXK3YjQMJ4jJkyMXxEmajodta7XjhaadD47WkM6CCANYxY9nT1VFBek3EDhwjwXH88Z7Gka/R2imwe6ycnm6tasusSrvKMwFdV7CnyS1osILssv0CI14g7Ol0TaXLXE9cMu5oOdm9yW6hJif50rBZe6SicX/7ClufF8HoC/BBTsRAWzORJJCssQqDQJ+oOWJ5echIQXga5EXkIakvXkERPiGxJgzn6u8hhwJL8fYRuzQMqlR7l8yZDxIgifc0MEhPXtM51MMQOp84cruDWTobyyYAuQ0lcTHmtWJp+wnb0rA3rFzm5lnS6aXcM5EItPzLFM02ZnnvmlInb3MY3k+peyJAVBRtG9i9wFSzWpEMgRt0K/p26ox5ouyQ8vkLlJNSzKMtkQmHvI8dlx1X/jMiKSVR00x9Dsfhf9lKBg7ef1P1H6SPfqJ26LiGp6jY9lLDZ8oxQ0XbmgnQOPw+ZvywqnUgN5wxP/OarKrsFaXIoS+Ji1VgDlwa4oixU0WjuBk3LMs4+YjdZyGRJUoeUBgz7DPbUF82cJa7/Qqx36K6uib0icjZxm3xIsoRo8zWhzBgFqeQfZwJOZfUpbKFG10VnP2FsUB5DnNLwDXSvEUHqxD1tsku1NZjZOCYzXBSRVXS/z1K/qQq7LH01QI6s3C/pTM2/Tnd1/hoMi5fXXCL7aDczLlBwUQyxxIjrs08uevHA9VNdqLsu6zB13vPwbjQG/1nBfbP5ueUOCnxNivY7nMtl2z2ruw9iGZrwbKxWcTZrOI8bIAXE2Xw4WQFspnOy152XULJpKh5uAuJWUXrUIwEkWDzWw3J8xs6yBjhQ39xh9ydhVyLKByRgfdMt7VCll8XcpdZdUwownjG9+Wo+SviaqqA9KNmikU6l7gzXo1WFMbjapxGhkRbzrcbNjJHkCcWA65lY8SGba+tQAVTEE07Cy8124I/bGc4nKrSks7q9nc0jScs/Aa4JFYTuwHqvwYaxWzJDi5GPsM3jqME66pDosWR0o64+1AnFYV8kv/Cez1aXxGKudPatnbrwx9RZEjILv1A92pClLMn2ASyz7tFlcMZdswNyxsoklHhMSbYMuIQpEto9wSB6+AFJ6GQIRRzTpcBo1L3z1Vwd2jfTGY245yANdvqBoOwYFEf8GzevKFd9le2h1t9GCu2Fw8rDDpotebCGMv54ANSyFEBMXN2ibvm2Zn/e+vvdL4F/UbnO8ajPYCBYVScg72YTd2pAzOdGBXbWcBEez4PYuS7Su2MzGs6A== kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpT2XBh+673Z45tZP1iqD9djwgprNjctjD6UpAehSTHePeMssisuqAkE5e6161lCzY6APK81rYuEBs2UUHQEYUxoa25if/TvxUrRHN0P9qP+h00xDJpFCRaeFgVsBHMNcRX6jItIWC48ddMBTlYWMeY7jZwiPjj9LS9T1/ePyBaRZRI5yptQLaI8xBYbLatNt/XVWRz2e3wkVr1JGjPTwnq/a0IuWxZPv934Gok0LZIbsSjvykJK4WxlpLA1za42VSXjrpCvQZDkDLIORYOiLolrGl4BDJrdGelUP7HvXTpM5LkhgBc9aLxV/H1xzVonNHQ/qnPxIJryfoqjU1xwo2OuHMXUuTN/+i2k5Xj83C/VSRMA4wwJ3HXMomaMprRazFF4mUKQPhz0TorzWivitmUvE4wn2P26ne7Qwd4ko7x6NZqQG831SxjN6zpgrTWPT5/tgP64orKoOGkFW9O02Dzl+htAQylil0b0do4xdXZUToBLidGLncKCD+zHHC0GaBi8O5CvlHuBC+5h+qIL8QoHOFdYEYI7YKtgTMZ9GgXCA== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=
0.05分

表面张力系数平均值：=(1)×10-3N/m

  • 填空(1)： 你的答案　2.44。
得分：0.05 分
datafill 2.44 /43JeE/wVKgTdRHKIgK9PqbVIwiWsulizRwwNfQSdF37dygpYZG0j0oveFVDqjHCnZcmrsrAuZxHpnHXxXYu+6H/GCOzxRKBj7C9ShtOzihFgdkfYsavhMNZlHpy8JTnV8HjvE6Ob+6A+Yl1XSePgOd5v/w8Q+v/Y4CTp+0pMryWsUfpTW990dE0W/fuBpewzX5di2jKYAUCBoX0FSzbDWVvzV3t2MBH2RXNOSVuyro= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw2bVjo5oBglysLVzNNXWy8LbGdi3O7PCJHauTlAKzLLQ+7rww/K7eastB1qQTIuB5UDoFSr65rhLEtMZQNHMcjxi2G+yl5EZwb+mWe7jPO9d7r28KffOwzSidwpXQ9BV16bYLWhUi0esc4MXBt44V5wO1hqvYdJnAZ9nurBjo8HDChEcryJ2BG2CtyNsTvYKVESAd03xPJgnIbDUq47ZNiYTrjUgWUvVrpsHSFVM7YLId9gGPn4t2mdykxrJ5wmI0o0/N/HV2Be1sfKalicUwj+u7hZhMell9w9bLxpa2h0jb9Ye73TpsCzZUJfCjsjD5KGmPViZd3GGPLqfnpItzorJ0287lH4fiPTor2SSLwfa649l5Id/T7CsFWxtaFcvYVWkKtN31XTJBiDE+jWIEjnzZKaRJudxqSVUR+HQ/VAnTfj5Yy2hDAV9TtOfcu19DuUCGAgqpxI7CDaEuegUtkW4gyHGhJYPzHuLiA9epkze+XOyiFzRbWfU9ABuRrEtT9eshIqqddEmU5AFezRmjBOa10YWCpLjXP6vkNJCaBPC kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUqeaVJMV/ibGpZ0Vn1sKaaCYowrcw1PjGwIp6zitAFzFUZwCGvx8W2hPTBrydVyjaDwcitQh2CtTe7MH+V69wK2fJwAuw2cM/LqAmaHr1/LkrSAJRNSjtWEWB3YOC6NgcUhGhw/3OSAyCL6cSyD4lrgWWzJwsYz4OoJpoWf/D+JEn9uWhPH1Fs1ZDkLOMXzyAh24GS1Q6/GmpYulbpuqXAM Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=

四、表面张力系数测量3

液体：(1)

浓度：C3＝(2)%

温度：T3＝(3)℃

  • 填空(1)： 你的答案　乙醇水溶液。
  • 填空(2)： 你的答案　75。
  • 填空(3)： 你的答案　20.6。
datafill 乙醇水溶液 75 20.6 OOAtCAe84oUW5Oy+HA8nXVHxlFXfoOnER4xQ2uXKjd4+PiVy4zu+p+c710MApMuJ HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==

表5 表面张力系数测量

测量次数 U1（mV） U2（mV）
1
2
3
4
5
测量次数U1（mV）U2（mV）
1115.794.1
2115.694.2
3114.894.4
4115.694.5
5115.994.8

表5 表面张力系数测量

测量次数 U1（mV） U2（mV）
1 38.4 0.3
2 38.7 0.2
3 38.5 0.1
4 38.6 0.2
5 39.1 0.2
table 115.7 94.1 115.6 94.2 114.8 94.4 115.6 94.5 115.9 94.8 HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==
0.15分

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1
2
3
4
5
测量次数ΔU（mV）F（×10-3N）α（×10-3N/m）
121.67.013.28
221.46.953.25
320.46.623.10
421.16.853.21
521.16.853.21

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1 38.1 10.80 51.32
2 38.5 10.92 51.86
3 38.4 10.89 51.73
4 38.4 10.89 51.73
5 38.9 11.03 52.40
得分：0.15 分
table 21.6 7.01 3.28 21.4 6.95 3.25 20.4 6.62 3.10 21.1 6.85 3.21 21.1 6.85 3.21 YZw189ktlC78g+STJSMyz90SjTLwK/1v5/jYVncVfZNtUFrMjxFlV52XKP/PAFNSWWJfizyXYO6QWM98XNzEk8Jcx9JqtlfDwowOIuCiMr21vIrZGNeKiZuZovUuDNwIdC3VvuUCRfXAfatXjL6rEmOx89TfvhZt0q271NxwG3fPjOHTEl/70cIWQCJGdDmcDx7lLQWCoH3rFIMEciZ7NKqDUgI6iQUiGsTxIu1SU5KwzG3czTHvA0dUTFbwHX6y81ENHP6qkj/OvABwGkbncgnbPuNXPSpUhpcyepRONR0CHuamjE1xzvZZd8cy0IsV058Fdhi2Ku7RV9Hk/j5unKofDxFw9uTL0f2Y+5IgadyPEUsAmCG/HnSdM0E6hpVr2eTdSBtgyqrIhe2mF8JxqOh7kZto3KdAqSZ2nNQ4rjxCl1epdX9+6ENuwiWPI6fbbLwDNUSWHdkEJjNe/o5AyGBFj4k+7FagUqXroTdvfpWRayWNROiQ9LX8j52Hy+e0DQTcCl6ySGK4dPjPxFa9YBb0J2fDx0F1DaoB5SaxCseq/aquiz2z7p7iPlzgMp1AqatCL45KqW+rdNCqRE4lsaAJuNdbTXdySPihTefkpEJ6zIBwxCINujTW8Xr9ZLwFGU4+gdm9BL73fjFNTSAzaXjmniIAKJATHmstLOy4Fmc= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw8WST0Rdglg5VdOfWUlOZsXunBExCk9dAWUqDP0iNWLDpvF27tJ6H//yYQSfZEpFTh1h5K6HBMz/FgQySftEVeP4AIEbwgWFp9oz6oPWlrfs7vPBwx/tuo0dNAIbs3P42Aq19YsiuNV2QtpbDWvN0XuzJ7k04oJ6DJ/yed6e8Qm/zWgPwN2ZqjeXuAPtlnN4+1NqwbgfIrPb3G3j8W7MxgWv/Ufv1NPz3peR3GwwBttTkvxI60JHkCZEflIyfo0iHfKhDve7uRn417ij0EjSqCCaNJnH7Td8TPgkbJr7tyj7AS7aURtR7wcBcKApEShkoo1/MnMD3sggvpJPSprULvjWyWvcbxIXgpFymEPCrJ3ZpQvjmeJMBAClu8WJ4ZeB6WDyLzcIrzNPdkd54xNbEmOz2v5dPNrrN1rVw64FtXxXyB4dUY2Je/IHAnri5YxafLXjvUEK/xWwlDU4E+Ol19I8hC91rgBSnM6+IptfO1VEsl5Nv2/Y8XtFR85peoSY1B+EdivlFLE+wXT80968g+Hw2NYtKJq+ZB3Y+uYt2W1dx+d1RSpMdFTzyXfI6t65+8CMi1Eq+PfzI6bm75Uxt5WB+lHUSs8jDF8CF4UAUHjJRUmPwleju/a7d9JJN3n8PZAW7wP9qBz0k9BfTXK3YjQMJ4jJkyMXxEmajodta7XjhaadD47WkM6CCANYxY9nT1VFBek3EDhwjwXH88Z7Gka/R2imwe6ycnm6tasusSrvKMwFdV7CnyS1osILssv0CI14g7Ol0TaXLXE9cMu5oOdm9yW6hJif50rBZe6SicX/7ClufF8HoC/BBTsRAWzORJJCssQqDQJ+oOWJ5echIQXga5EXkIakvXkERPiGxJgzn6u8hhwJL8fYRuzQMqlR7l8yZDxIgifc0MEhPXtM51MMQOp84cruDWTobyyYAuQ0lcTHmtWJp+wnb0rA3rFzm5lnS6aXcM5EItPzLFM02ZnnvmlInb3MY3k+peyJAVBRtG9i9wFSzWpEMgRt0K/p26ox5ouyQ8vkLlJNSzKMtkQmHvI8dlx1X/jMiKSVR00x9Dsfhf9lKBg7ef1P1H6SPfqJ26LiGp6jY9lLDZ8oxQ0XbmgnQOPw+ZvywqnUgN5wxP/OarKrsFaXIoS+Ji1VgDlwa4oixU0WjuBk3LMs4+YjdZyGRJUoeUBgz7DPbUF82cJa7/Qqx36K6uib0icjZxm3xIsoRo8zWhzBgFqeQfZwJOZfUpbKFG10VnP2FsUB5DnNLwDXSvEUHqxD1tsku1NZjZOCYzXBSRVXS/z1K/qQq7LH01QI6s3C/pTM2/Tnd1/hoMi5fXXCL7aDczLlBwUQyxxIjrs08uevHA9VNdqLsu6zB13vPwbjQG/1nBfbP5ueUOCnxNivY7nMtl2z2ruw9iGZrwbKxWcTZrOI8bIAXE2Xw4WQFspnOy152XULJpKh5uAuJWUXrUIwEkWDzWw3J8xs6yBjhQ39xh9ydhVyLKByRgfdMt7VCll8XcpdZdUwownjG9+Wo+SviaqqA9KNmikU6l7gzXo1WFMbjapxGhkRbzrcbNjJHkCcWA65lY8SGba+tQAVTEE07Cy8124I/bGc4nKrSks7q9nc0jScs/Aa4JFYTuwHqvwYaxWzJDi5GPsM3jqME66pDosWR0o64+1AnFYV8kv/Cez1aXxGKudPatnbrwx9RZEjILv1A92pClLMn2ASyz7tFlcMZdswNyxsoklHhMSbYMuIQpEto9wSB6+AFJ6GQIRRzTpcBo1L3z1Vwd2jfTGY245yANdvqBoOwYFEf8GzevKFd9le2h1t9GCu2Fw8rDDpotebCGMv54ANSyFEBMXN2ibvm2Zn/e+vvdL4F/UbnO8ajPYCBYVScg72YTd2pAzOdGBXbWcBEez4PYuS7Su2MzGs6A== kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpT2XBh+673Z45tZP1iqD9djwgprNjctjD6UpAehSTHePeMssisuqAkE5e6161lCzY6APK81rYuEBs2UUHQEYUxoa25if/TvxUrRHN0P9qP+h00xDJpFCRaeFgVsBHMNcRX6jItIWC48ddMBTlYWMeY7jZwiPjj9LS9T1/ePyBaRZRI5yptQLaI8xBYbLatNt/XVWRz2e3wkVr1JGjPTwnq/a0IuWxZPv934Gok0LZIbsSjvykJK4WxlpLA1za42VSXjrpCvQZDkDLIORYOiLolrGl4BDJrdGelUP7HvXTpM5LkhgBc9aLxV/H1xzVonNHQ/qnPxIJryfoqjU1xwo2OuHMXUuTN/+i2k5Xj83C/VSRMA4wwJ3HXMomaMprRazFF4mUKQPhz0TorzWivitmUvE4wn2P26ne7Qwd4ko7x6NZqQG831SxjN6zpgrTWPT5/tgP64orKoOGkFW9O02Dzl+htAQylil0b0do4xdXZUToBLidGLncKCD+zHHC0GaBi8O5CvlHuBC+5h+qIL8QoHOFdYEYI7YKtgTMZ9GgXCA== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QC8HAOPhv8c/oov7/+3c/i0=
0.05分

表面张力系数平均值：=(1)×10-3N/m

  • 填空(1)： 你的答案　3.21。
得分：0.05 分
datafill 3.21 /43JeE/wVKgTdRHKIgK9PkE+fUXvlh2iURe/UmM+hqRqHrSlCMjiAkK3apVbPWv0Jzqo7x6MV9D74ApLeCTCDRliNHS6GLe3mQeVSZcCYSjL2DCe7UigVLebR4h5twA8gWfyrNnuwHiimwAqhk9YMaHKofGcnH+TnL01xEJmnIoFRiqUTpJfRVxQMFqPi5QvVZQRBWRcL4KuydPzS308K93hF+KOI+YEiVWWFEUxiaU= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw2bVjo5oBglysLVzNNXWy8LbGdi3O7PCJHauTlAKzLLQ+7rww/K7eastB1qQTIuB5UDoFSr65rhLEtMZQNHMcjxi2G+yl5EZwb+mWe7jPO9d7r28KffOwzSidwpXQ9BV16bYLWhUi0esc4MXBt44V5wO1hqvYdJnAZ9nurBjo8HDChEcryJ2BG2CtyNsTvYKVESAd03xPJgnIbDUq47ZNiYTrjUgWUvVrpsHSFVM7YLId9gGPn4t2mdykxrJ5wmI0o0/N/HV2Be1sfKalicUwj+u7hZhMell9w9bLxpa2h0jb9Ye73TpsCzZUJfCjsjD5KGmPViZd3GGPLqfnpItzorJ0287lH4fiPTor2SSLwfa649l5Id/T7CsFWxtaFcvYVWkKtN31XTJBiDE+jWIEjnzZKaRJudxqSVUR+HQ/VAnTfj5Yy2hDAV9TtOfcu19DuUCGAgqpxI7CDaEuegUtkW4gyHGhJYPzHuLiA9epkze+XOyiFzRbWfU9ABuRrEtT9eshIqqddEmU5AFezRmjBOa10YWCpLjXP6vkNJCaBPC kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUqeaVJMV/ibGpZ0Vn1sKaaCYowrcw1PjGwIp6zitAFzFUZwCGvx8W2hPTBrydVyjaDwcitQh2CtTe7MH+V69wK2fJwAuw2cM/LqAmaHr1/LkrSAJRNSjtWEWB3YOC6NgcUhGhw/3OSAyCL6cSyD4lrgWWzJwsYz4OoJpoWf/D+JEn9uWhPH1Fs1ZDkLOMXzyAh24GS1Q6/GmpYulbpuqXAM Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QC8HAOPhv8c/oov7/+3c/i0=

五、表面张力系数测量4

液体：(1)

浓度：C4＝(2)%

温度：T4＝(3)℃

  • 填空(1)： 你的答案　乙醇水溶液。
  • 填空(2)： 你的答案　50。
  • 填空(3)： 你的答案　20.6。
datafill 乙醇水溶液 50 20.6 OOAtCAe84oUW5Oy+HA8nXRAJHqTrtikpxxLT6JxqPXbD0zOGCJcYHHdeSyxg9l32 HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==

表6 表面张力系数测量

测量次数 U1（mV） U2（mV）
1
2
3
4
5
测量次数U1（mV）U2（mV）
1117.994.2
2118.694.3
3118.694.7
4118.794.2
5118.194.0

表6 表面张力系数测量

测量次数 U1（mV） U2（mV）
1 38.4 0.3
2 38.7 0.2
3 38.5 0.1
4 38.6 0.2
5 39.1 0.2
table 117.9 94.2 118.6 94.3 118.6 94.7 118.7 94.2 118.1 94.0 HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==
0.15分

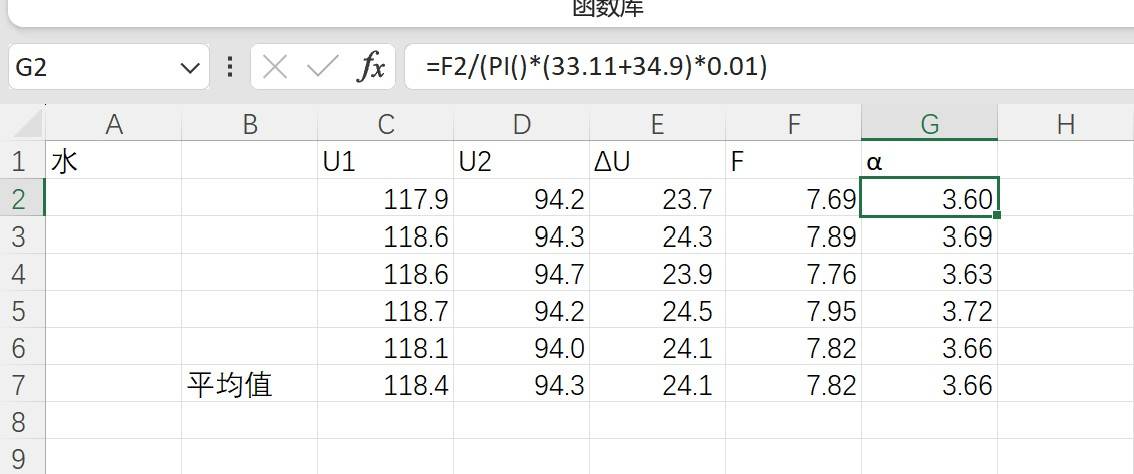

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1
2
3
4
5
测量次数ΔU（mV）F（×10-3N）α（×10-3N/m）
123.77.693.60
224.37.893.69
323.97.763.63
424.57.953.72
524.17.823.66

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1 38.1 10.80 51.32
2 38.5 10.92 51.86
3 38.4 10.89 51.73
4 38.4 10.89 51.73
5 38.9 11.03 52.40
得分：0.15 分
table 23.7 7.69 3.60 24.3 7.89 3.69 23.9 7.76 3.63 24.5 7.95 3.72 24.1 7.82 3.66 YZw189ktlC78g+STJSMyz3yEvqsjtknsrG5p4l3RmuE20nh2jwybQfs44Y5BGMKsN5CmW+ZyOyKo3sgtNuho1h/8t3KtFoNumZc2sgSgpTn1r6/k02jB8rGQQep1I4RGPYD3CM7igTXuQ0HAn9Y9SMFOYf6K/UeWj+GaqNaUEkl54DtELor0oZHMnlhNl/FM3Y6HAn9K5oTQv+tyyoEGk0XNUsX0zGn+LAFVOwYAQIw8nuaptEedgmA0dRdT7XlapWfDqxA+dX2Hirbg4miXz6qdPVPVCV8M4Bjhr8ZqAR9hemObg/pW1NWu2Gx+uaqFn6kBvDM00RO7yqKqim0pdxFZkMpVLzY5fRKlIRrxjzqiOi9+KNBYa04wD5H/QzpqJjvKV0Ktt3DEbV3Bam5cu9iNQnlTtuJK5W71QfN69wybUTniNo7GjyvQ/I0I1kkY4fofGaSHe/WKP3l6GFYey83ac4Nm4bLIL7oNVit84C8T07ThgPBwVYqCajqoAocMO/jMSB9oxkcjdKwz383X529atr6Wun/kdH1xG7s+D+9miDWN/uBN0KDFtXJHFZQcEmWTwjoRYHHdljgd3LAYa27rXeg7p+iyZm1qQqNpmRaGUJlFvMWGRfYLpaE/aUFdlRVA6XhsEISA/jq8gypncwnjbUpctISJrDMeRqR4bIs= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw8WST0Rdglg5VdOfWUlOZsXunBExCk9dAWUqDP0iNWLDpvF27tJ6H//yYQSfZEpFTh1h5K6HBMz/FgQySftEVeP4AIEbwgWFp9oz6oPWlrfs7vPBwx/tuo0dNAIbs3P42Aq19YsiuNV2QtpbDWvN0XuzJ7k04oJ6DJ/yed6e8Qm/zWgPwN2ZqjeXuAPtlnN4+1NqwbgfIrPb3G3j8W7MxgWv/Ufv1NPz3peR3GwwBttTkvxI60JHkCZEflIyfo0iHfKhDve7uRn417ij0EjSqCCaNJnH7Td8TPgkbJr7tyj7AS7aURtR7wcBcKApEShkoo1/MnMD3sggvpJPSprULvjWyWvcbxIXgpFymEPCrJ3ZpQvjmeJMBAClu8WJ4ZeB6WDyLzcIrzNPdkd54xNbEmOz2v5dPNrrN1rVw64FtXxXyB4dUY2Je/IHAnri5YxafLXjvUEK/xWwlDU4E+Ol19I8hC91rgBSnM6+IptfO1VEsl5Nv2/Y8XtFR85peoSY1B+EdivlFLE+wXT80968g+Hw2NYtKJq+ZB3Y+uYt2W1dx+d1RSpMdFTzyXfI6t65+8CMi1Eq+PfzI6bm75Uxt5WB+lHUSs8jDF8CF4UAUHjJRUmPwleju/a7d9JJN3n8PZAW7wP9qBz0k9BfTXK3YjQMJ4jJkyMXxEmajodta7XjhaadD47WkM6CCANYxY9nT1VFBek3EDhwjwXH88Z7Gka/R2imwe6ycnm6tasusSrvKMwFdV7CnyS1osILssv0CI14g7Ol0TaXLXE9cMu5oOdm9yW6hJif50rBZe6SicX/7ClufF8HoC/BBTsRAWzORJJCssQqDQJ+oOWJ5echIQXga5EXkIakvXkERPiGxJgzn6u8hhwJL8fYRuzQMqlR7l8yZDxIgifc0MEhPXtM51MMQOp84cruDWTobyyYAuQ0lcTHmtWJp+wnb0rA3rFzm5lnS6aXcM5EItPzLFM02ZnnvmlInb3MY3k+peyJAVBRtG9i9wFSzWpEMgRt0K/p26ox5ouyQ8vkLlJNSzKMtkQmHvI8dlx1X/jMiKSVR00x9Dsfhf9lKBg7ef1P1H6SPfqJ26LiGp6jY9lLDZ8oxQ0XbmgnQOPw+ZvywqnUgN5wxP/OarKrsFaXIoS+Ji1VgDlwa4oixU0WjuBk3LMs4+YjdZyGRJUoeUBgz7DPbUF82cJa7/Qqx36K6uib0icjZxm3xIsoRo8zWhzBgFqeQfZwJOZfUpbKFG10VnP2FsUB5DnNLwDXSvEUHqxD1tsku1NZjZOCYzXBSRVXS/z1K/qQq7LH01QI6s3C/pTM2/Tnd1/hoMi5fXXCL7aDczLlBwUQyxxIjrs08uevHA9VNdqLsu6zB13vPwbjQG/1nBfbP5ueUOCnxNivY7nMtl2z2ruw9iGZrwbKxWcTZrOI8bIAXE2Xw4WQFspnOy152XULJpKh5uAuJWUXrUIwEkWDzWw3J8xs6yBjhQ39xh9ydhVyLKByRgfdMt7VCll8XcpdZdUwownjG9+Wo+SviaqqA9KNmikU6l7gzXo1WFMbjapxGhkRbzrcbNjJHkCcWA65lY8SGba+tQAVTEE07Cy8124I/bGc4nKrSks7q9nc0jScs/Aa4JFYTuwHqvwYaxWzJDi5GPsM3jqME66pDosWR0o64+1AnFYV8kv/Cez1aXxGKudPatnbrwx9RZEjILv1A92pClLMn2ASyz7tFlcMZdswNyxsoklHhMSbYMuIQpEto9wSB6+AFJ6GQIRRzTpcBo1L3z1Vwd2jfTGY245yANdvqBoOwYFEf8GzevKFd9le2h1t9GCu2Fw8rDDpotebCGMv54ANSyFEBMXN2ibvm2Zn/e+vvdL4F/UbnO8ajPYCBYVScg72YTd2pAzOdGBXbWcBEez4PYuS7Su2MzGs6A== kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUpT2XBh+673Z45tZP1iqD9djwgprNjctjD6UpAehSTHePeMssisuqAkE5e6161lCzY6APK81rYuEBs2UUHQEYUxoa25if/TvxUrRHN0P9qP+h00xDJpFCRaeFgVsBHMNcRX6jItIWC48ddMBTlYWMeY7jZwiPjj9LS9T1/ePyBaRZRI5yptQLaI8xBYbLatNt/XVWRz2e3wkVr1JGjPTwnq/a0IuWxZPv934Gok0LZIbsSjvykJK4WxlpLA1za42VSXjrpCvQZDkDLIORYOiLolrGl4BDJrdGelUP7HvXTpM5LkhgBc9aLxV/H1xzVonNHQ/qnPxIJryfoqjU1xwo2OuHMXUuTN/+i2k5Xj83C/VSRMA4wwJ3HXMomaMprRazFF4mUKQPhz0TorzWivitmUvE4wn2P26ne7Qwd4ko7x6NZqQG831SxjN6zpgrTWPT5/tgP64orKoOGkFW9O02Dzl+htAQylil0b0do4xdXZUToBLidGLncKCD+zHHC0GaBi8O5CvlHuBC+5h+qIL8QoHOFdYEYI7YKtgTMZ9GgXCA== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QC8HAOPhv8c/oov7/+3c/i0=
0.05分

表面张力系数平均值：=(1)×10-3N/m

  • 填空(1)： 你的答案　3.66。
得分：0.05 分
datafill 3.66 /43JeE/wVKgTdRHKIgK9Pplgy9lEGcvsBAsQJtTA4UReBFz3wzDwBd5eEJ5qkIGrvPNqFdOZNESCUZOM+nNO8gEgvW0RdGh2ubimQxsMpbi8HZApJrF/u5Javg8Ywrog5iCycb9kMimXfanQfXWFZc5Y/ZU2LsfMWVTC3iqwjVaehKrCSeTJ+wQGA/8DDMJrTVIu4Ip6OBKFS8amFcxmSa/t44JAPdW9HVPGaXCbRqw= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw2bVjo5oBglysLVzNNXWy8LbGdi3O7PCJHauTlAKzLLQ+7rww/K7eastB1qQTIuB5UDoFSr65rhLEtMZQNHMcjxi2G+yl5EZwb+mWe7jPO9d7r28KffOwzSidwpXQ9BV16bYLWhUi0esc4MXBt44V5wO1hqvYdJnAZ9nurBjo8HDChEcryJ2BG2CtyNsTvYKVESAd03xPJgnIbDUq47ZNiYTrjUgWUvVrpsHSFVM7YLId9gGPn4t2mdykxrJ5wmI0o0/N/HV2Be1sfKalicUwj+u7hZhMell9w9bLxpa2h0jb9Ye73TpsCzZUJfCjsjD5KGmPViZd3GGPLqfnpItzorJ0287lH4fiPTor2SSLwfa649l5Id/T7CsFWxtaFcvYVWkKtN31XTJBiDE+jWIEjnzZKaRJudxqSVUR+HQ/VAnTfj5Yy2hDAV9TtOfcu19DuUCGAgqpxI7CDaEuegUtkW4gyHGhJYPzHuLiA9epkze+XOyiFzRbWfU9ABuRrEtT9eshIqqddEmU5AFezRmjBOa10YWCpLjXP6vkNJCaBPC kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUqeaVJMV/ibGpZ0Vn1sKaaCYowrcw1PjGwIp6zitAFzFUZwCGvx8W2hPTBrydVyjaDwcitQh2CtTe7MH+V69wK2fJwAuw2cM/LqAmaHr1/LkrSAJRNSjtWEWB3YOC6NgcUhGhw/3OSAyCL6cSyD4lrgWWzJwsYz4OoJpoWf/D+JEn9uWhPH1Fs1ZDkLOMXzyAh24GS1Q6/GmpYulbpuqXAM Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=

六、表面张力系数测量5

液体：(1)

浓度：C5＝(2)%

温度：T5＝(3)℃

  • 填空(1)： 你的答案　乙醇水溶液。
  • 填空(2)： 你的答案　25。
  • 填空(3)： 你的答案　20.7。
datafill 乙醇水溶液 25 20.7 OOAtCAe84oUW5Oy+HA8nXazkUooDurGY6Lqv1NK660QeTu0wZRbU0X9qsTx2InUd HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==

表7 表面张力系数测量

测量次数 U1（mV） U2（mV）
1
2
3
4
5
测量次数U1（mV）U2（mV）
1121.193.1
2120.592.8
3121.392.6
4121.792.6
5121.492.7

表7 表面张力系数测量

测量次数 U1（mV） U2（mV）
1 38.4 0.3
2 38.7 0.2
3 38.5 0.1
4 38.6 0.2
5 39.1 0.2
table 121.1 93.1 120.5 92.8 121.3 92.6 121.7 92.6 121.4 92.7 HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ== HLLIPGEigCS9uQcpleVWHQ==

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1
2
3
4
5
测量次数ΔU（mV）F（×10-3N）α（×10-3N/m）
128.09.094.25
227.78.994.21
328.79.324.36
429.19.454.42
528.79.324.26

表面张力系数计算

测量次数 ΔU（mV） F（×10-3N） α（×10-3N/m）
1 38.1 10.80 51.32
2 38.5 10.92 51.86
3 38.4 10.89 51.73
4 38.4 10.89 51.73
5 38.9 11.03 52.40
table 28.0 9.09 4.25 27.7 8.99 4.21 28.7 9.32 4.36 29.1 9.45 4.42 28.7 9.32 4.26 YZw189ktlC78g+STJSMyz4krD89xQClXH/uzUDP2JNpCQbj8sFeC0FPcx1dCjZv4UQYhBsMSpHG0WCltJ8eO3k74+L37ZbpvYg4rFiijl3cTKhcorzM+QvQfUfK5ECrtB7NsknaClxcWiAKysiOzaxCccQvGHErvdpUHNZf2YrIGskTIeA8TH8gTvdJHrpZV4ZPicoeXfH6fs7eYn9Mg87eMRNPVp/UKnvmMcfD3KfCbNSn77lXlAp6Vnk4c3c2v7YRQJCd8bAvDwR0Q5FXWkBfmbAVaaznEK3G57C3gTOFiURRzhuQJutKdy7yk+S0/dqH/3Qo6KOqHjygDeag3OzULvum5yLxMfgIuF5cUDKy9fhKuP6LDtsJ04E5/MtkeZHljKCscAI80opWDX+ep1de7ziKnAs6P8BUPYSokpzJk+3eOL7tcOH2hfPASthDWTtyZgVT2ZN+96emneAe7UCiRELzHkjHfAU825fGnyEczZ9EXnnpBA8h6gWyaeU6Usvhkcv7+GsZe1B5b4R9LWqqxbqjGB0BNkb1QK2i0fn9inXYrIkTssPVrN9wIvef3OXFLMycaGZzhJNFTijI9bNPvbj1FyOhMmybwlDp/1wH7R+/O6q4YuXxnL8kJDbessrrU8mKO0VSW8wQjEzbPUjHBj2CKkgDTuCs+gtpqEAg= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw8WST0Rdglg5VdOfWUlOZsXunBExCk9dAWUqDP0iNWLDpvF27tJ6H//yYQSfZEpFTh1h5K6HBMz/FgQySftEVeP4AIEbwgWFp9oz6oPWlrfs7vPBwx/tuo0dNAIbs3P42Aq19YsiuNV2QtpbDWvN0XuzJ7k04oJ6DJ/yed6e8Qm/zWgPwN2ZqjeXuAPtlnN4+1NqwbgfIrPb3G3j8W7MxgWv/Ufv1NPz3peR3GwwBttTkvxI60JHkCZEflIyfo0iHfKhDve7uRn417ij0EjSqCBo+WOTET+Z0NkkaIvuuX4y+cm2gNzKBxp8hXtssgmDH1AynEbLYStP7WxKACba46Zdno2KLPD/0UwY9c4zayoAIcmyRp1B7U8eZabzU9f6zt7bo/bmGCiZJFDzhkobNqPkNCwXlwTIIRPcsksXDtZMujXY9P1DdAiRTehdU0RYAtm9BVI3AghH49zjDm2hpKsX1C0BoCI9anMWfd779gg7tc2eBfp/0X7xXoU/zZklNTh7tmVWkGAzBRBj1ihgIPpt9LW831GO3o/7he9fXlyTd9PVBgAL4osWbu+4Z8/XlgzU/6hZqTYUzhBEhqla2r3ctCAFVuDAIYIQCR0KWQSwl2KryicJTIK/nXWdLs216OY8amGzp8nPtqM7vKcR0OwnB5UelFjTNYoKcyhfVs8V9Zj2u0YUvFfzyCoUAjbufXDeDPk3SZZ35TKg9fEHW2dceacbSZ4Udi5iZgS3Ed9cnklXFubAGRjJuRPsMgivuUz32k1gb8JqpfY2bjSRWxtm/a4o4F8VoP+D71Dk1t07HFxVeb6NM/hKacr1IpjG+TzBjrbDJ5hDi9SF0BMFcGPiNHakc4+y4TI+lNnQHctlL2r+OawoGAXrW39OPLgRS+3cq9MdTxAFJHONR0+05+jJOK04AD18WaYN9aCPiKfVgwOPAYf1MbfBF4yHmwv1UxMDTYGbc+m7NFPmI8Lbd+nVzP/SHH3ShjiHnskxssOeBHZ9KawN4ylaHHQr4rL0oHlYYiYTTDQnwrONfikENNDTNo8Kut+DJVFvUXKO/5C7YXiwFIX0mLVypx3U3F6ypSWVGfEwdNXGq+Aqzc1l+8C3u6tzlqMhnH7TUvcwI98XNehXtUa/TBDEbNZZqh8cClz3Lw0xZJrvzVRiW1R7lHcZ/spX3b4/DH9u057dK7bkeMVr+z3lC5zCrPgTAC9Gn2T1fx2tUpq30n6MX7WKJYWUQdqvZaJcHB595LCBOgOeibxInpfCuXRTb42OnovxvgTjuHXGIpDTdYl4Jf5x/a78lGM360nqEV6EJdQ+jrQQDC6qhiBCCerRTkoyeuYb3StakZuR8BZZw8/vli3C1/rgViX7T3+u8uWlHvADLT+o5JUOlzd/B1MNUkX+62RY+TWGPqrThHoA7X53xqPaVVFa1FC2FUsAHsSY8B/dSCCYdByyctBcEMYgVPnYocJ3t1JmjYbMQ5mNb6BcE+Ip42fHDbXyYw3agWGmG2x3oqNIM5jGUjbJiOkzqxbs4MCkTL/U+cs/LZNytdbImnkw2LTJ7bEm3ODmOk+jEs+UovaJgUwyQa2nJF2DK+KQufkADQFWQibJlVfb2AH2gY8fhhlhEStNzb2DwILKAFHZG8jdoreL2HasK+3d/5j5LSgXqNB/LtDtH7FX8pszV9krq+y3wBIDYz68EUXqOJW8wAZCCRSgvRS/AazVVHEzuscFli/u3QOzU6gW8hnGrJzmn5gOdaYoZOcYGKZzz24YqbYHQWBpJ7Pzji7KNqfhzTwQBZx9ZpBS45gSefBQY85hJvJ0OSE84jfdFYmnKBCRyceeyLlL8AgcR5Qc/66sCU4I1N16J6sQyW9q/wY184D7t6A= HLLIPGEigCS9uQcpleVWHQ== Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=

表面张力系数平均值：=(1)×10-3N/m

  • 填空(1)： 你的答案　4.32。
datafill 4.32 /43JeE/wVKgTdRHKIgK9PvGRAU7XS+dL8dZu58VnLI7rhPsp3OIOari0w4Wq3ioutNYihffdl3lX8jwl2gaYJospD+/z+tM+wUKL29TI7HJlGQDTg4+mQCla4aGyaBibMu5m7igxrlwJGhLSR+rJy9z6zWPZd0ymGlh5BIGc/EMmUKzHVEIbH5w0EaWfCg5z4J1FDMpTQuQrMjytNpnk8oPJpMydRpaNfIY/6EEzBak= nSvZoqxgHipT88kt4fm8aXHaAY3XBjwA/8z6UE4NG4iManPiGBjJr2kJZMDLCGsCXZM7Y1GqcXx4jJVW+Sxmw2bVjo5oBglysLVzNNXWy8LbGdi3O7PCJHauTlAKzLLQ+7rww/K7eastB1qQTIuB5UDoFSr65rhLEtMZQNHMcjxi2G+yl5EZwb+mWe7jPO9d7r28KffOwzSidwpXQ9BV16bYLWhUi0esc4MXBt44V5wO1hqvYdJnAZ9nurBjo8HDChEcryJ2BG2CtyNsTvYKVESAd03xPJgnIbDUq47ZNiaagAcIqYhEOUW0m3/269EL4csP6cmgcPKbQEyNb3HEOQJomw7SyVayINLLmi8fk2MxLMRvyxvoBezdmdLkGZ+D9ZA28pwOgL1MVw4gA8UfB1KbGaEVke97Fr38bM/zHjE1nL7caDwkTXxjRhAGyin0XMK+Ua5IPVR/PUNUIzkhk+UEnPSJ1ty3AXlfIcUBVFDhUEjqij0S0A7ylAtbMqjlg/yL8IDj2eABh2HxM7Ti69Mcrq5eOU9tbkvRMrC2HxSjR0CCJwxNUMocW6Z+DSSxzcYX4Zk+8URWbB1V4uRmev8BWMjBkgPp6PGrqmootXo= kbs8cUEArIzl90tKMNafbYHxVlWcZSPCSNHpyr79Ghet8cA3zN2g8pM9FKB7U4TQaxwCptcELlCLEqij9G39SnL+KuKO9adY8zD9IqZic8HGZd0xaAtW6TswGU5lqPr7QwLI7k6bdO4eE13xWhxhk3G6B50H48YzYcFoQNYnAUqeaVJMV/ibGpZ0Vn1sKaaCYowrcw1PjGwIp6zitAFzFUZwCGvx8W2hPTBrydVyjaDwcitQh2CtTe7MH+V69wK2fJwAuw2cM/LqAmaHr1/LkrSAJRNSjtWEWB3YOC6NgcUhGhw/3OSAyCL6cSyD4lrgWWzJwsYz4OoJpoWf/D+JEn9uWhPH1Fs1ZDkLOMXzyAh24GS1Q6/GmpYulbpuqXAM Y9EJwVXuEk9FCJXdEvM5JWDxcfgwUJSgVOuYcNmUnyXBinFZyrLwmgLGrlyaOKXDoOkJlaV2woMiZGKx6Rr2OH/eJp6Fv6z2izijntMUlEZfxrtpbKsOcf0P+tW+WyS+gxCS+NrXN+5OU2qTIaCtMcKD0kTSdAhPDTyb0jniWBzE1rJRmRALFp6dfYpDj9To6Lb7k1bhjCDyDlSOFs/6QLJn2rNheFxkeGYLB72a/js=

七、溶液浓度与液体表面张力系数的关系

0.2分

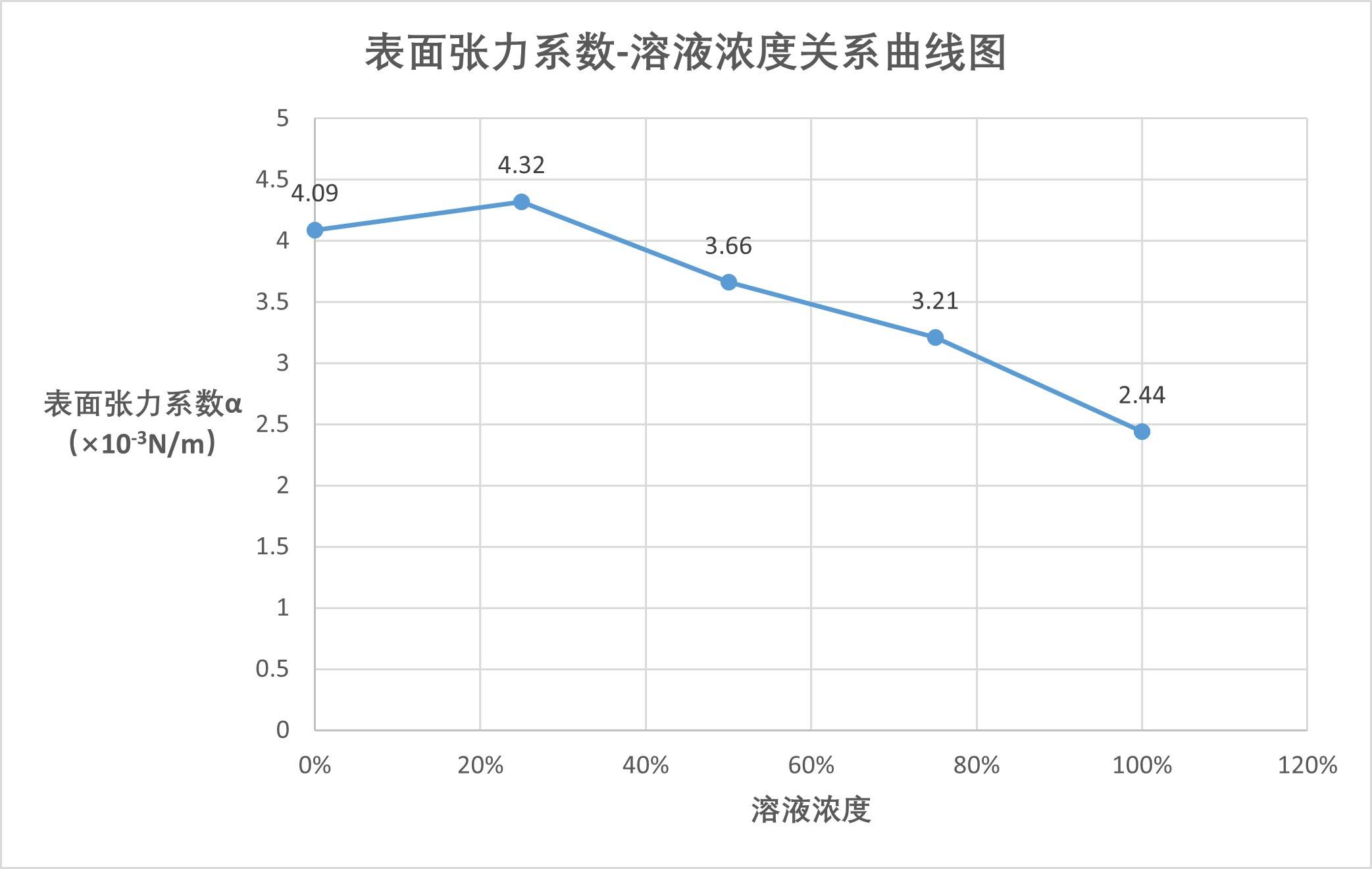

做溶液表面张力系数-溶液浓度关系曲线图（此处视纯水的浓度为0%）。

得分：0.2 分

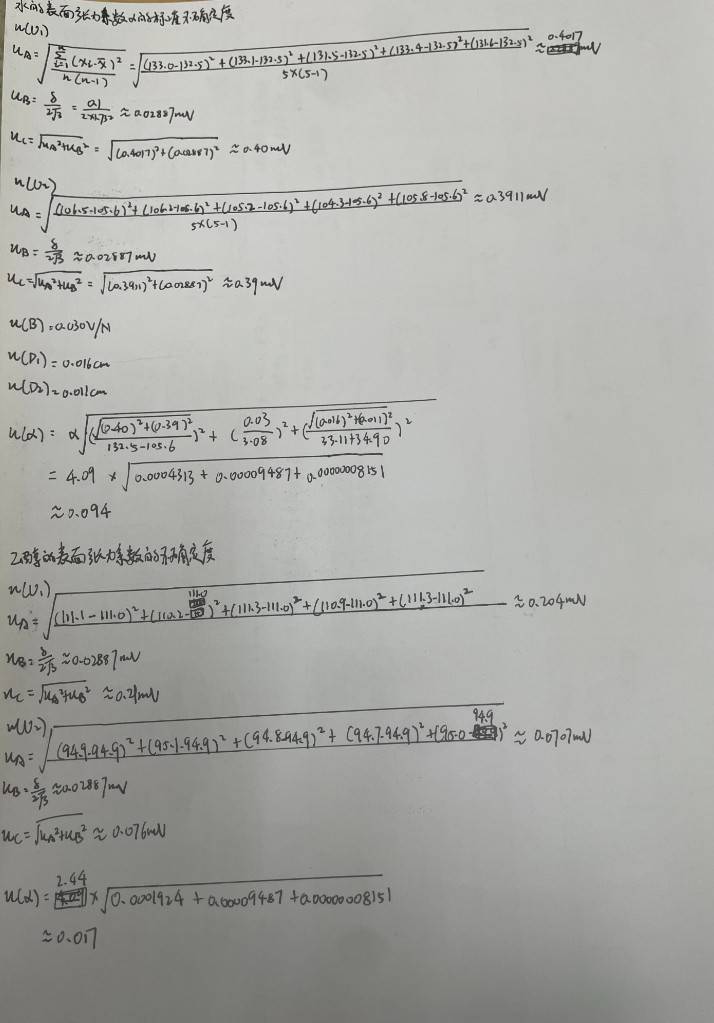

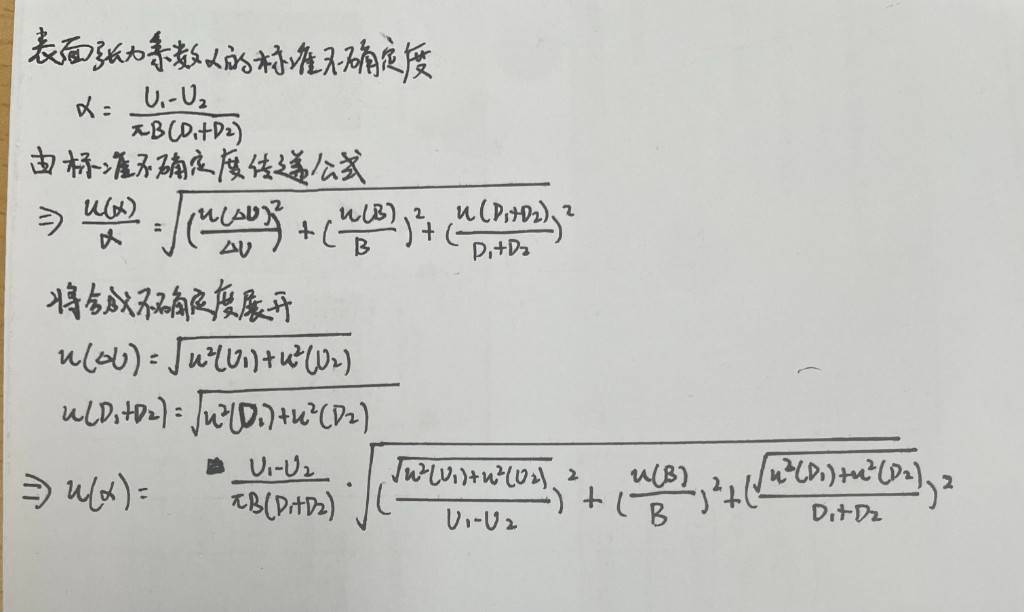

在数据处理中，我们已经计算出了测力计的灵敏度的不确定度，以及吊环内、外径的不确定度等。试在“实验分析”中给出表面张力的合成标准不确定度，并写出表面张力的完整表达形式。

分析讨论与结论

0.2分

分析讨论

水表面张力系数：α(u)=4.09(0.094)×10-3N/m

乙醇表面张力系数：α(u)=2.44(0.017)×10-3N/m

得分：0.2 分

0.1分

结论

本实验采用拉脱法测量出了不同液体的表面张力系数

水表面张力系数平均值：=4.09×10-3N/m，标准不确定度=0.094×10-3N/m

乙醇表面张力系数平均值：=2.44×10-3N/m，标准不确定度=0.017×10-3N/m

75%乙醇溶液表面张力系数平均值：=3.21×10-3N/m

50%乙醇溶液表面张力系数平均值：=3.66×10-3N/m

25%乙醇溶液表面张力系数平均值：=4.32×10-3N/m

得分：0.1 分

原始数据

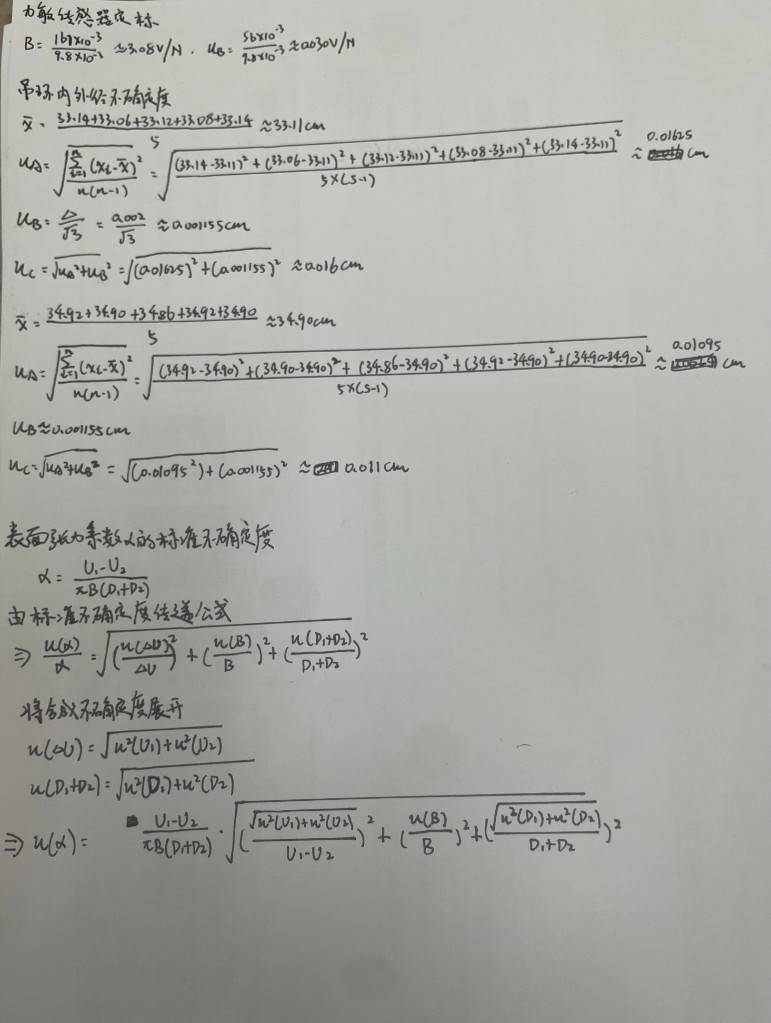

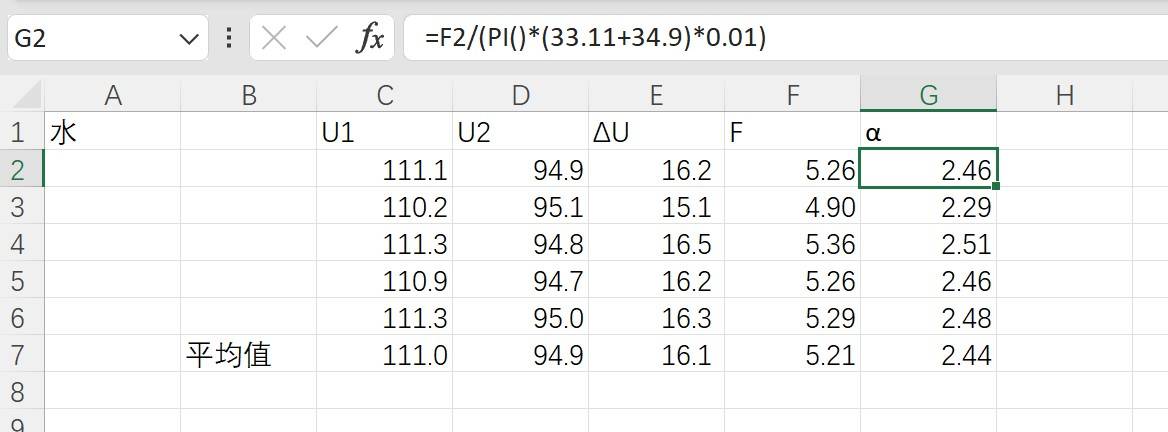

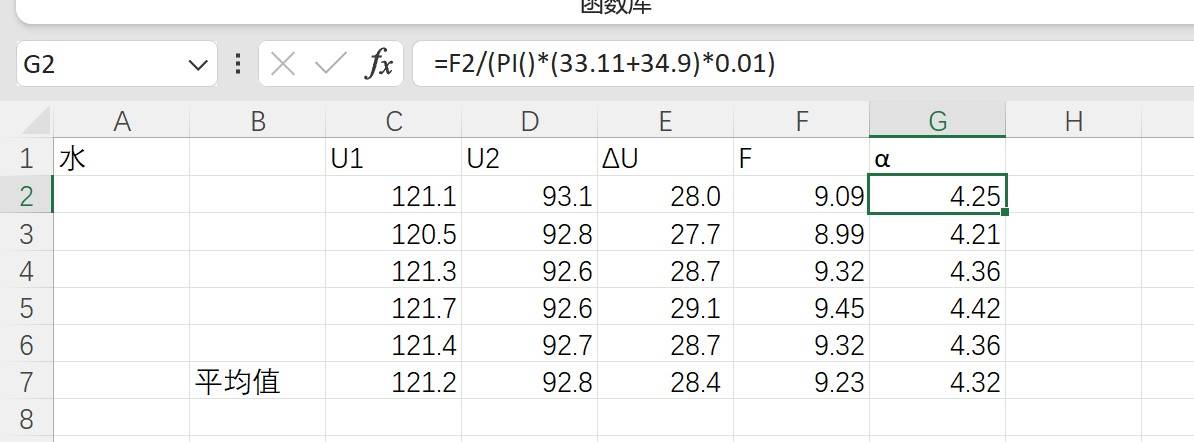

数据处理过程

0.3分

得分：0.3 分
